Description: The Quadrum M350 S is a fully automatic rotary laser for the exact alignment of horizontals and verticals. With a radius of 350 metres, the laser reception range is extremely large. The functions can easily be controlled with the remote control up to a max. distance of 40 metres. The manual tilt mode allows gradients to be created. In the event of external influences, an automatic power off is triggered.

Time-saving fully automatic alignment by means of automatic sensor

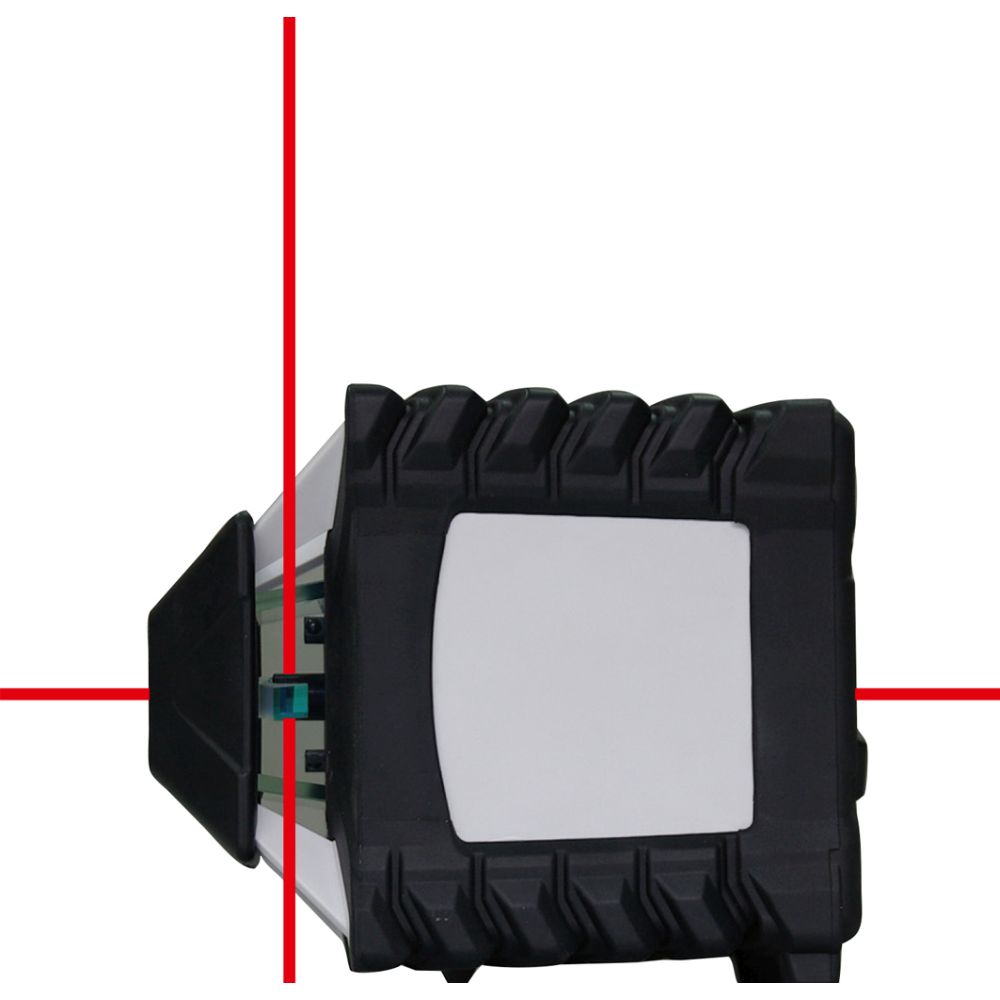

The 90° reference beam is provided to plumb and align partition walls

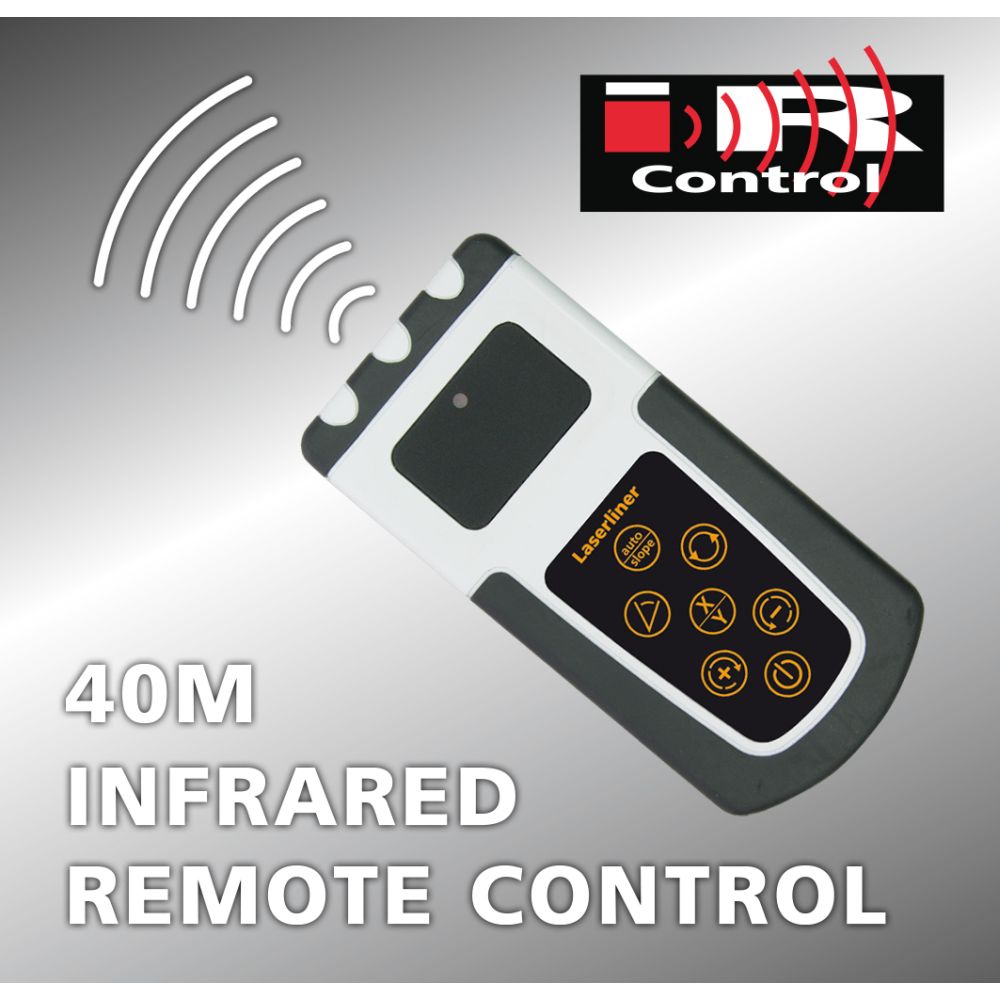

All functions can be controlled with the remote control up to a max. distance of 40 m

Large reception area for a wide range of applications

Easy-to-read LC displays on front and back

Reliable measurement through automatic power off with ADS tilt

Waterproof housing

Transport LOCK: The device is protected by a special motor brake during transport

Laser modes: spot, scan, rotary and hand receiver mode

Remote operation controls all functions from all sides up to max. 40 m

ADS-Tilt: auto power off in the event of external influence through ADS (Anti-Drift System)

LC display front and rear

Switchable, extremely loud Piezo buzzer sound

Rugged enclosure

Head- and side magnets

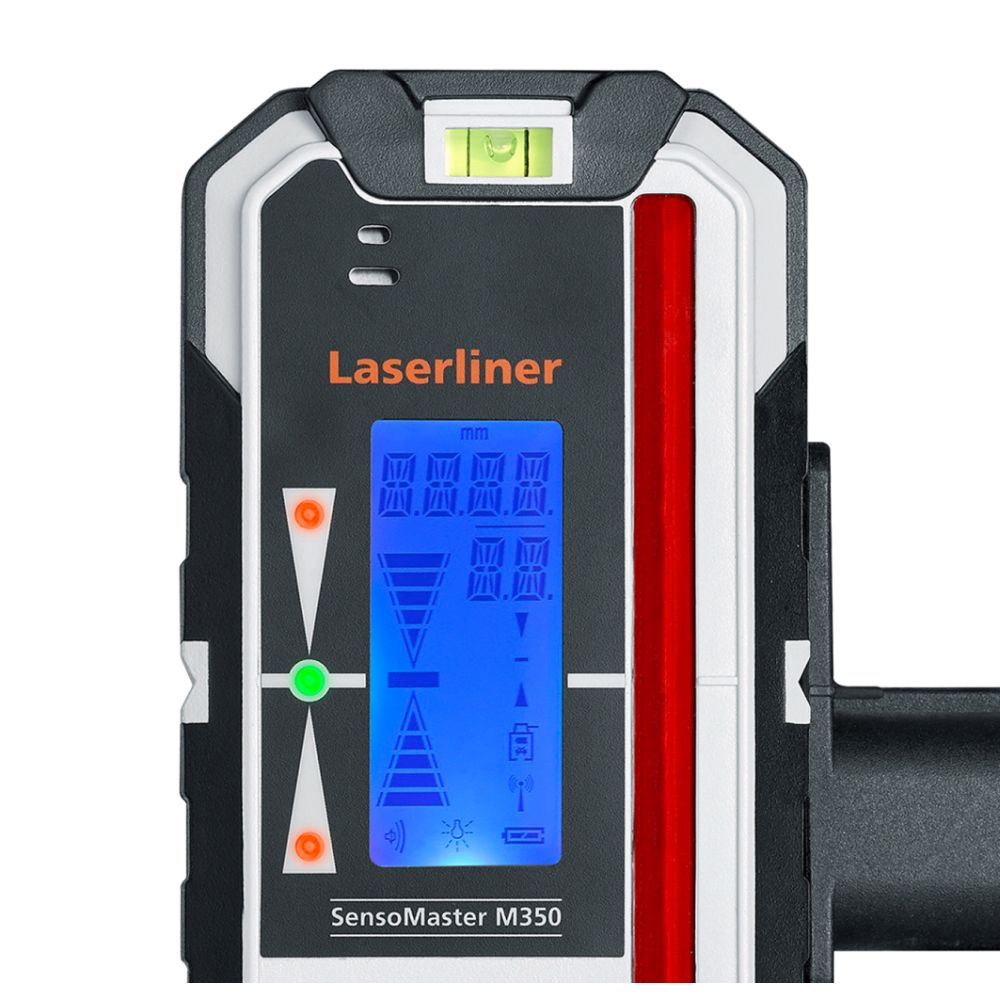

Height difference to laser level is displayed graphically and numerically

Horizontal/vertical levelling	✅
Hand receiver mode	✅
Scan mode	✅
Spot mode	✅
Motorised slope function	✅
Manual slope function	✅
Precision sensor levelling	✅
Battery and mains operation	✅
Anti-Drift-System (ADS)	✅
Battery operation	✅
Plumb laser up (90° reference beam)	✅
Plumb laser down	✅
Tilt warning function	✅
Self-Levelling Range	± 5°
Accuracy	± 0.1 mm / m
Levelling	automatic horizontal / vertical levelling with electronic levels and motors
Laser Wavelength	635 nm
Laser Class	2 / < 1 mW (EN 60825-1:2014/A11:2021 / EN 50689:2021)
Laser Modes	Hand receiver mode Spot mode Rotary mode Scan mode
Protection Class	IP 66
Power Supply	4 x 1.2V HR14 (C) NiMH 4 x 1.5V LR14 (C)
Operating Time	Rechargeable battery: approx. 35 hours / Batteries: approx. 50 hours
Battery Recharging Time	approx. 7 hours
Operating Conditions	-10°C … 50°C, Luftfeuchtigkeit max. 80% rH, nicht kondensierend, Arbeitshöhe max. 4000 m über NN (Normalnull)
Storage Conditions	-10°C … 70°C, Luftfeuchtigkeit max. 80% rH
Dimensions (W x H x D)	215 mm x 205 mm x 165 mm
Weight	2600 g (inkl. Akkupack)

Scope of delivery:

Quadrum

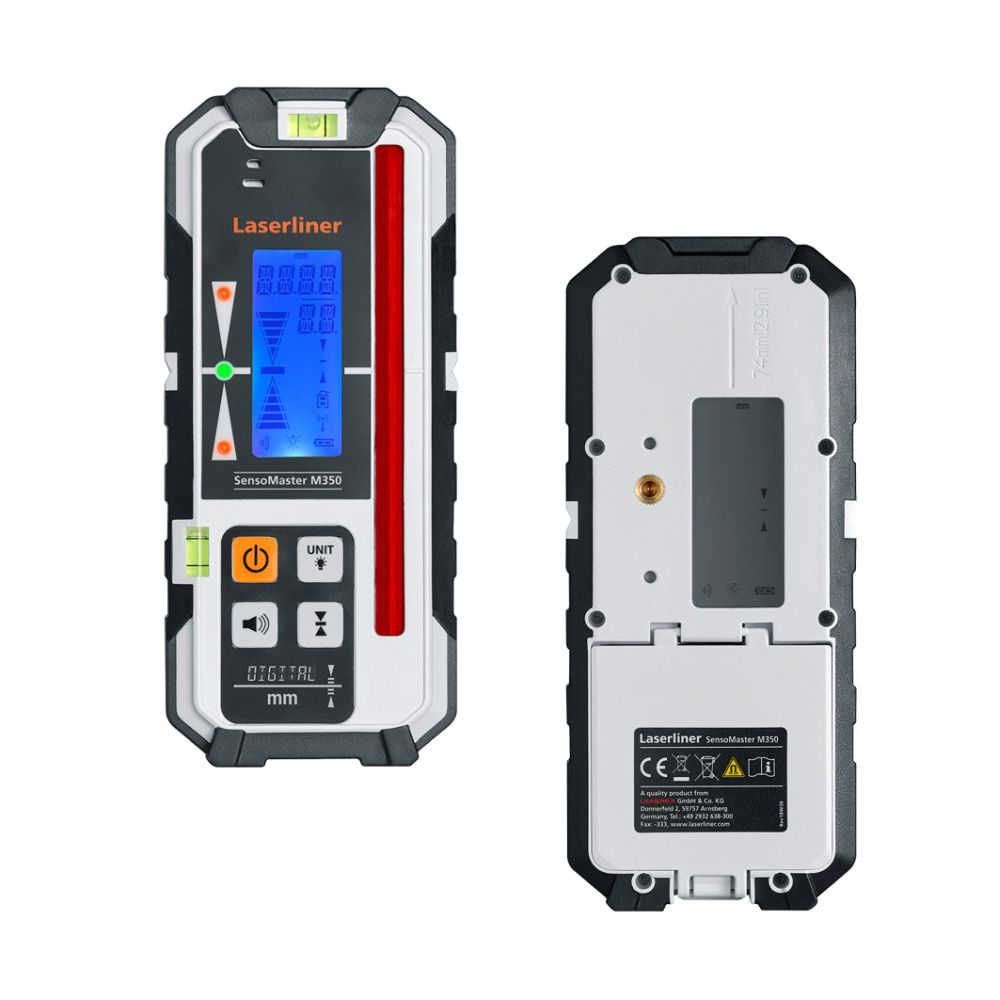

SensoMaster M350

universal mount

remote control

rechargeable battery

battery compartment

power supply / battery charger

batteries

carrying case

Documentation:

Instructions
Instructions part 2
Instructions part 3
Instructions part 4
Instructions part 5 Instructions part 6
