SmartLine

SmartCross-Laser GX Set

Crossline laser

Item no.: 036.731E
EAN: 4021563731794
SmartCross-Laser GX Set
🔍 Click to enlarge

Product video

Description

Compact green cross-line laser with excellent visibility, 1/4” thread and versatile clamping bracket - use of recycled material

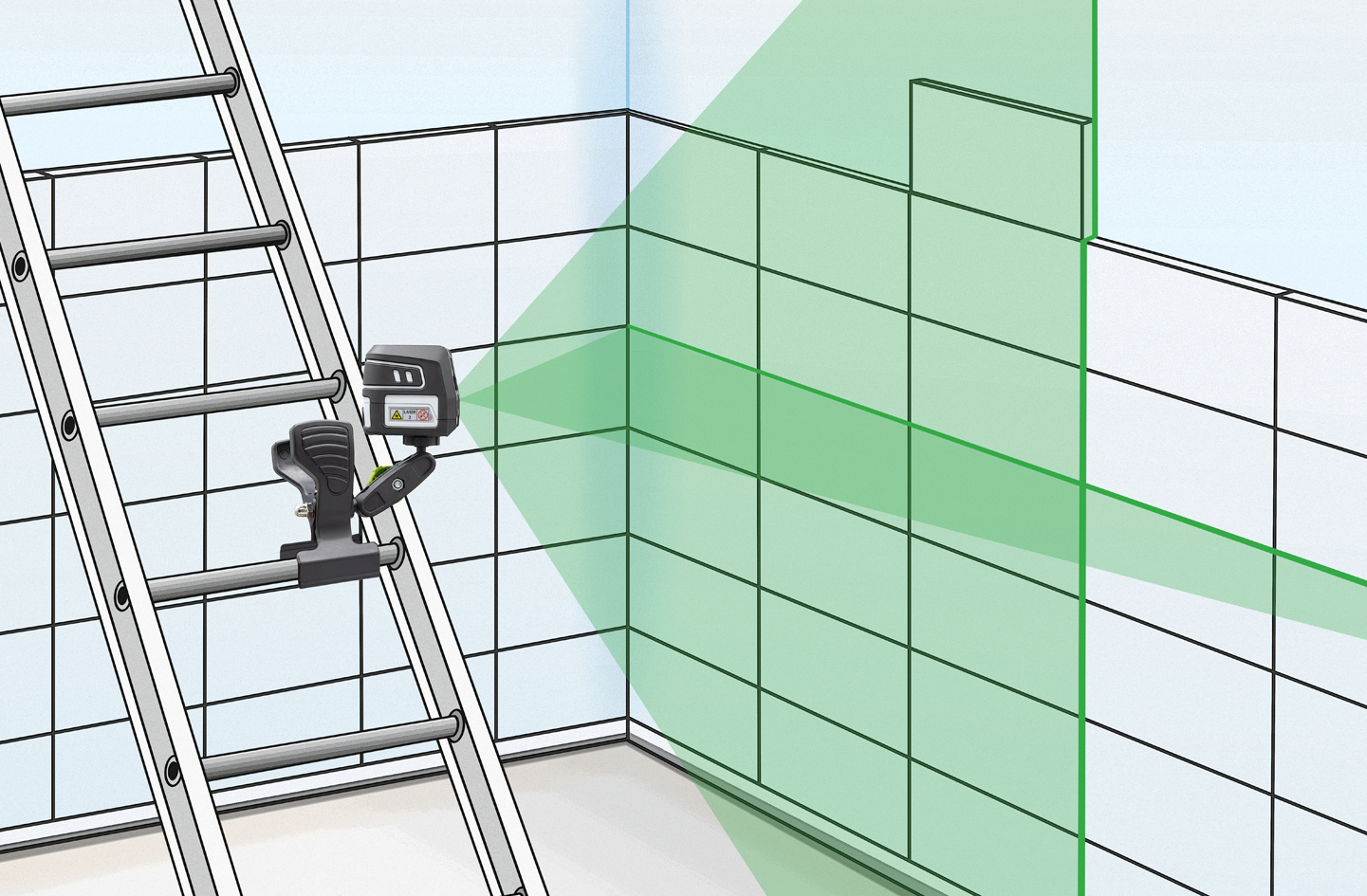

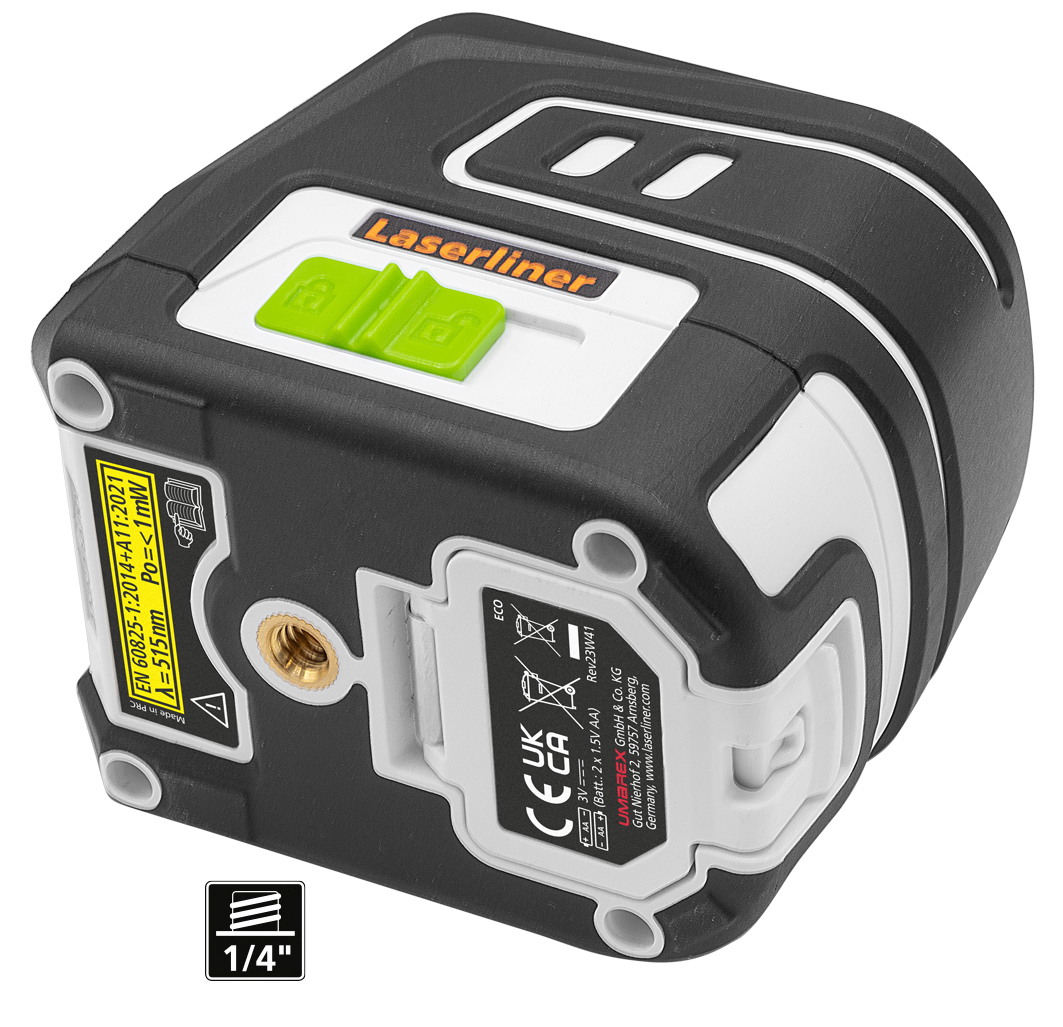

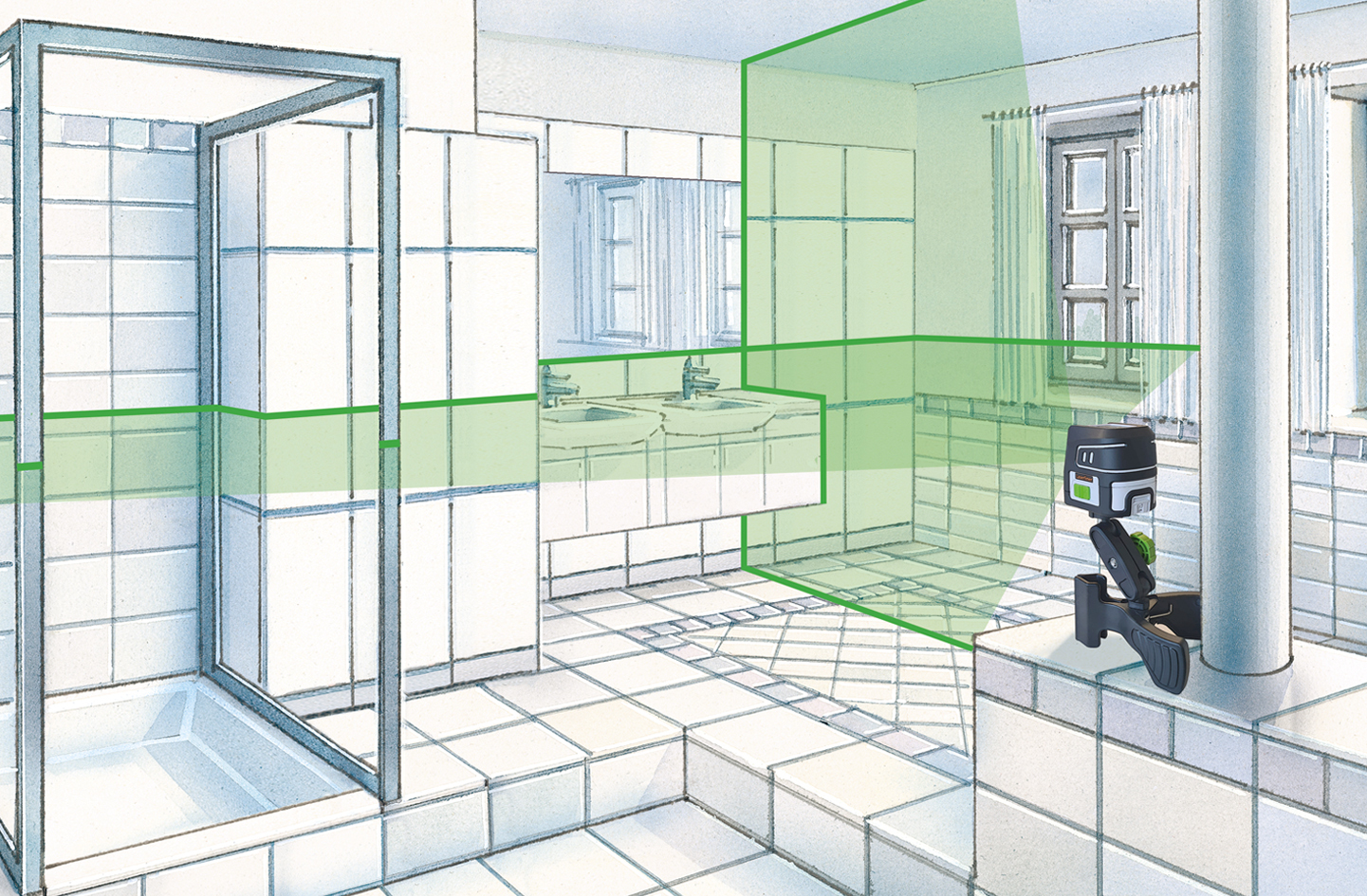

This cross-line laser projects a highly visible green laser cross for precise horizontal and vertical alignment of objects. It also offers a manual slope function for easy creation of gradients and a 1/4” thread for mounting on a tripod or the supplied clamping bracket. This enables optimal use of the laser in interior fitting work and allows rapid adjustment of position and height. It can be fixed in place on site without damaging surfaces. The laser can also be used for outdoor applications and alignment work at long distances with the integrated hand-held receiver mode.

Highlights

  • Accurate horizontal and vertical alignment of objects
  • Good visibility through green laser technology
  • Easy alignment of slopes with manual tilt function
  • Versatile damage-free mounting options
  • Height and position of the measuring device easily adjustable
  • Time-saving automatic alignment

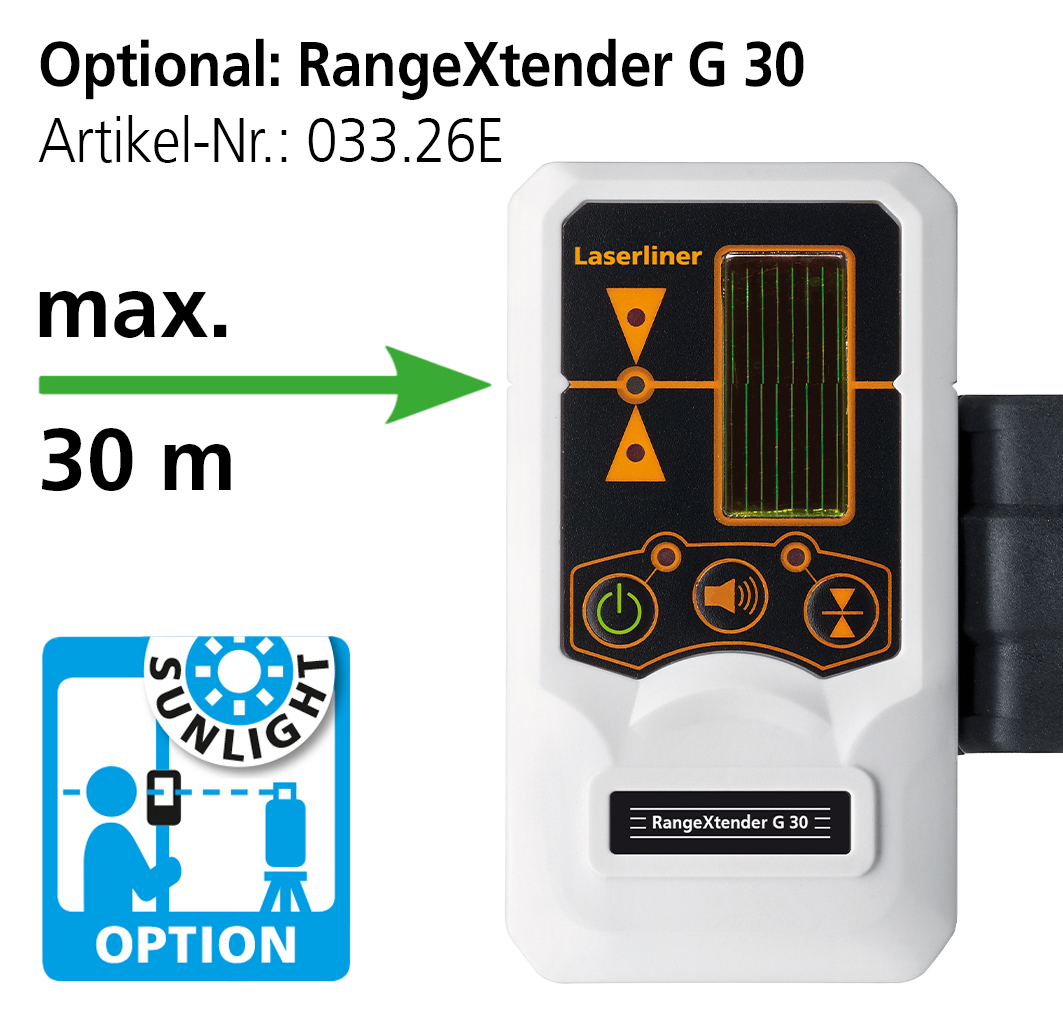

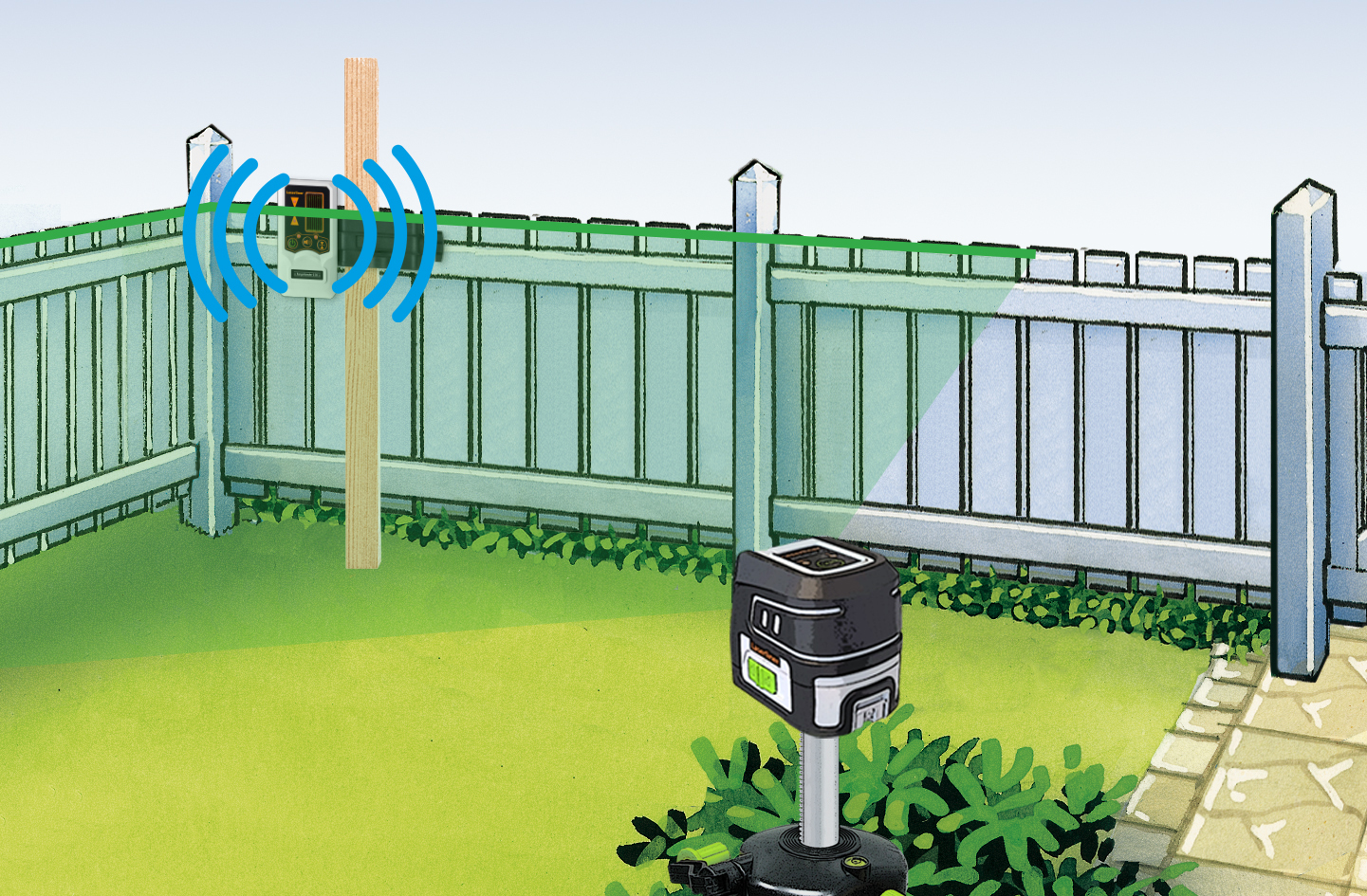

  • Integrated hand-held receiver mode for outdoor applications
  • Visual signals indicate when the device is outside its self-levelling range
  • Pendulum restraint for safe transport
  • Housing with recycled content

Technical data

Horizontal/vertical levelling✅
Manual slope function✅
Battery operation✅
Hand receiver mode✅
Self-Levelling Range± 4°
Accuracy±0.3 mm/m
Levellingautomatic
Visibility (Typical)*40 m
Laser Wavelength515 nm
Laser Class2 / < 1 mW

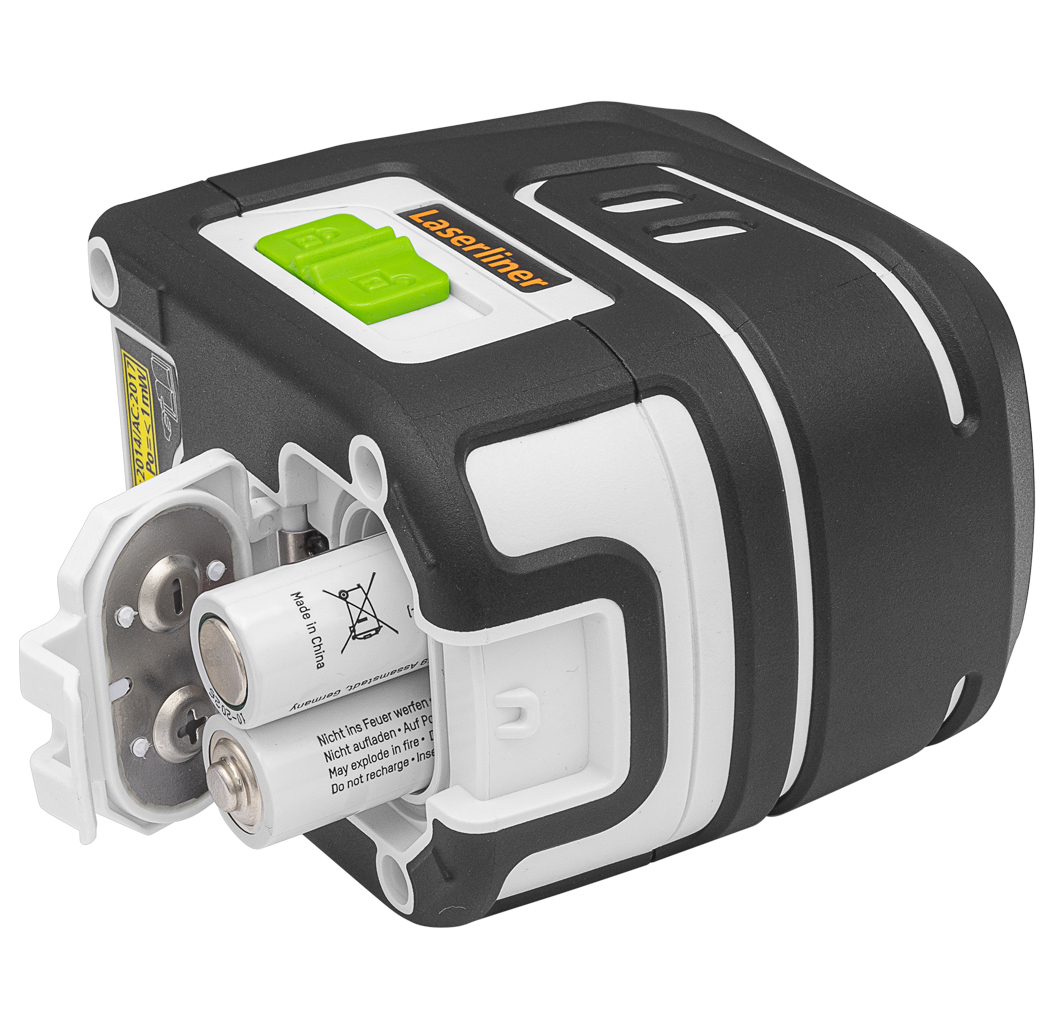

Power Supply2 x 1.5V LR6 (AA)
Operating Timeapprox. 6 hours
Operating Conditions-10°C … 50°C, max. humidity 80% rH, no condensation, max. working altitude 4000 m above sea level
Storage Conditions-20°C … 70°C, max. humidity 85% rH
Dimensions (W x H x D)84 mm x 76 mm x 62 mm
Weight276 g (incl. battery)

Scope of delivery

  • SmartCross-Laser GX
  • FlexClamp
  • batteries
