LevelPlane-Laser Multi-12V

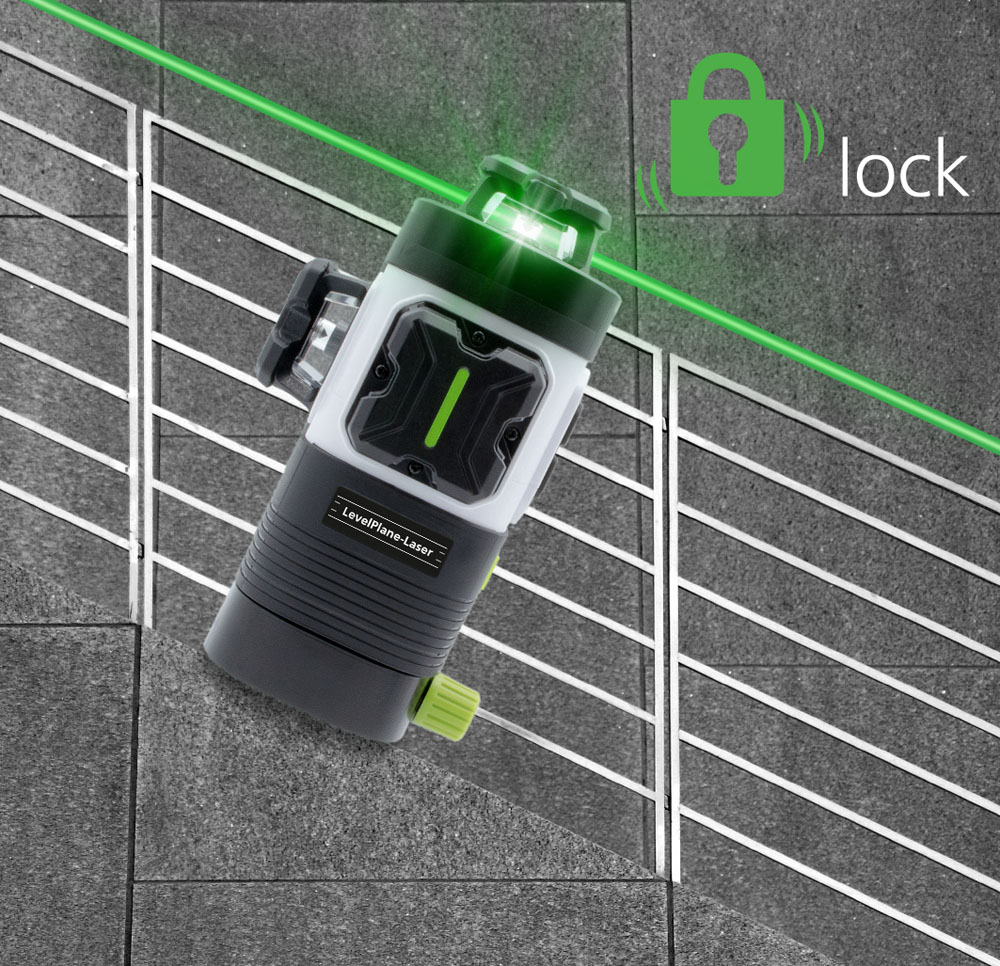

Three-dimensional green laser with one horizontal and two vertical laser lines – high visibility and PowerAdapters for 12V battery systems from Bosch, Makita, Milwaukee and DeWalt


Description: This three-dimensional laser projects one horizontal and two vertical laser lines, ideal for precise alignment of objects throughout a room. Using green laser technology with the PowerGreen+ brightness classification, it ensures high visibility even in unfavorable lighting conditions. Thanks to the PowerAdapters, the laser is compatible with 12V battery systems from Bosch, Makita, Milwaukee, and DeWalt. This allows users to integrate the laser seamlessly into their existing tools for efficient and smooth operation. Disclaimer: The mentioned brands are not affiliated with UMAREX GmbH & Co. KG. Bosch is a registered trademark of Robert Bosch GmbH, Makita of Makita Corporation, Milwaukee of Techtronic Industries Co. Ltd., and DeWalt of Stanley Black & Decker.

  • Three bright green laser lines with high visibility of up to 55 meters
  • Compatibility with 12V battery systems: Works with 12V batteries from Bosch, Makita, Milwaukee and DeWalt thanks to included PowerAdapters
  • Easy alignment of slopes with manual tilt function
  • Individually switchable laser circles
  • Plumb function for synchronous working on floor and ceiling
  • MicroControl: High-precision adjustment of the vertical laser lines via lateral fine adjustment without having to move the laser itself
  • Time-saving automatic alignment
  • Integrated handheld receiver mode for outdoor applications and long ranges
  • Reliable measurement through automatic power off with ADS tilt
  • Pendulum restraint for safe transport
  • With 1/4" thread
  • With 5/8" thread
  • Disclaimer: The mentioned brands are not affiliated with UMAREX GmbH & Co. KG. Bosch is a registered trademark of Robert Bosch GmbH, Makita of Makita Corporation, Milwaukee of Techtronic Industries Co. Ltd., and DeWalt of Stanley Black & Decker

  • Horizontal/vertical levelling
    Manual slope function
    Battery operation
    Replaceable battery system
    Hand receiver mode
    Self-Levelling Range± 3°
    Accuracy±0.2 mm/m
    Levellingautomatic
    Visibility (Typical)*55 m
    Laser Wavelength515 nm
    Laser Class2 / < 1 mW (EN 60825-1:2014/AC:2017)
    Operating Timewith 12V system 2.0 Ah approx. 8 hrs
    with 12V system 5.0 Ah approx. 20 hrs
    Operating Range(depends on how the technology affects the difference in brightness) 50 m
    Operating Conditions0°C … 50°C, max. humidity 80% rH, no condensation, max. working altitude 4000 m above sea level
    Storage Conditions-10°C … 70°C, max. humidity 80% rH, no condensation
    Dimensions (W x H x D)215 mm x 170 mm x 107 mm
    Weight780 g (without adapter)

    Scope of delivery:
  • LevelPlane-Laser Multi-12V
  • PowerAdapter Bosch compatible Multi-12V
  • PowerAdapter Makita compatible Multi-12V
  • PowerAdapter Milwaukee compatible Multi-12V
  • PowerAdapter DeWalt compatible Multi-12V
  • carrying case

  • Accessories (optional):


    • RangeXtender G 60
      (Art.No.: 033.55A) - laser receiver


    • RangeXtender M 70
      (Art.No.: 033.80A) - Laser receiver


    • VarioStand L 300 cm
      (Art.No.: 080.24A) - tripod


    • Crank Tripod P 175 cm
      (Art.No.: 080.26) - crank tripod


    • Crank Tripod 260 cm
      (Art.No.: 080.35) - Crank tripod


    • Crank Tripod 300 cm
      (Art.No.: 080.39) - Crank tripod


    • TelePod Stand 330 cm
      (Art.No.: 090.125A) - Telescopic clamping tripod



    Documentation:

    Titel:
    Three-dimensional green laser

    Industrial Quality (BlackLine) / Professional Technology (OrangeLine):
    BlackLine

    Art.No.: 031.450A, GTIN (EAN): 4021563746859
