SmartLine

VideoScope One

Compact inspection camera

Item no.: 082.252E
EAN: 4021563735785
VideoScope One
🔍 Click to enlarge

Product video

Description

Compact inspection camera for visual inspections of areas which are difficult to access - use of recycled material

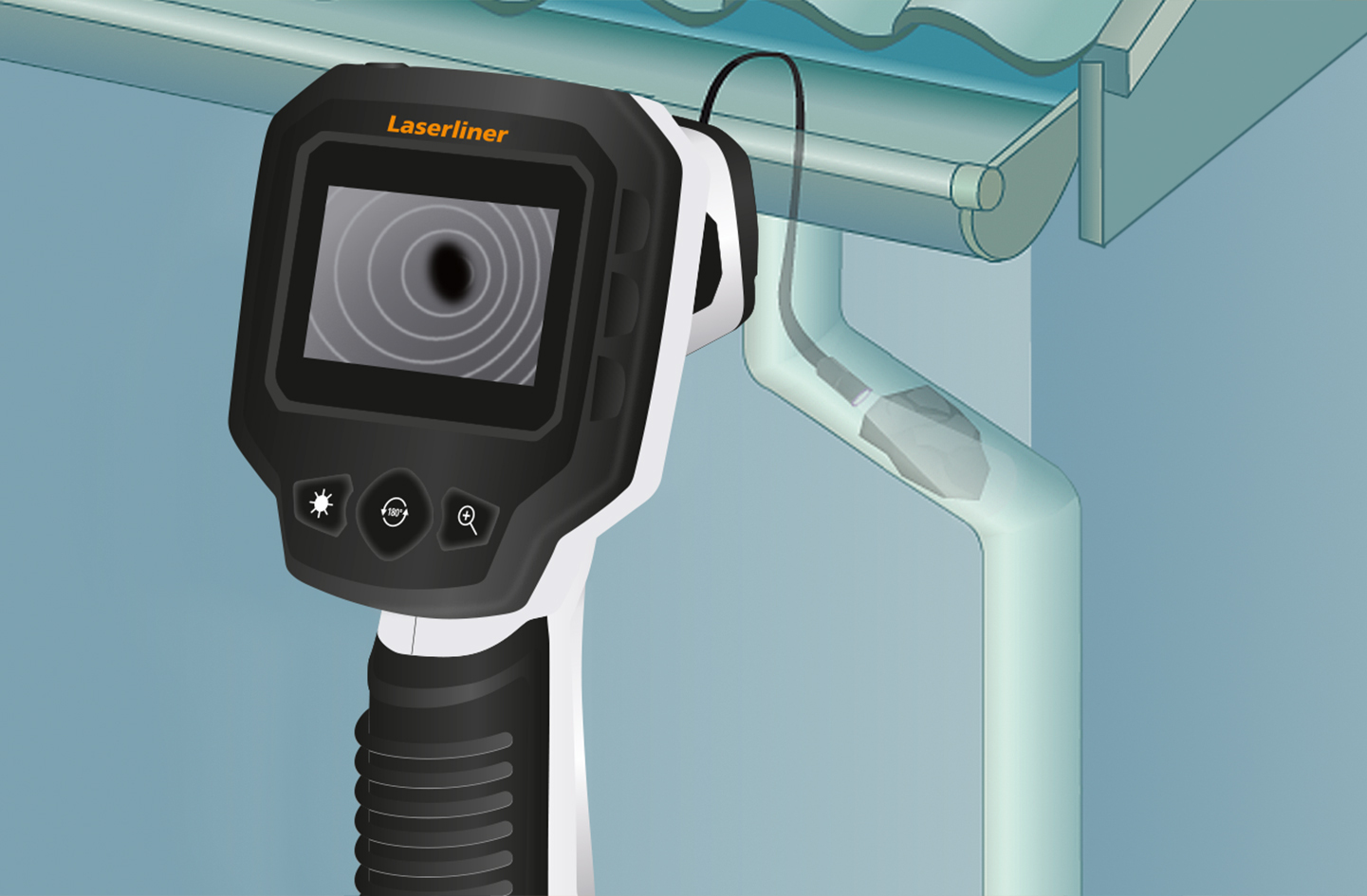

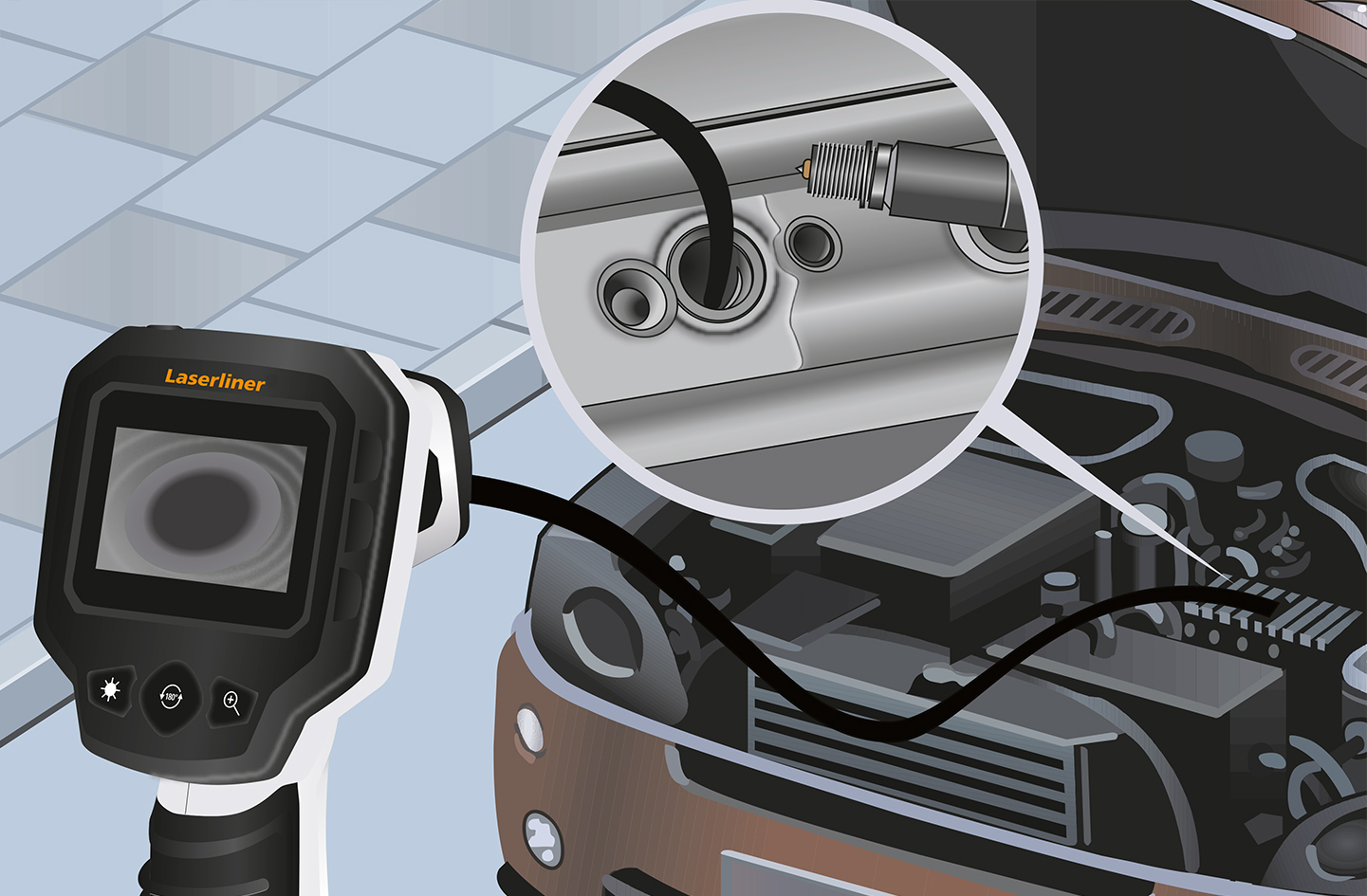

This compact video inspection system with waterproof camera head is suitable for easy visual inspection of hard-to-reach places in pipes, cavities, shafts, masonry and motor vehicles. Illumination with four high-performance LEDs provides clear pictures, even in extremely poor light. The image always remains clear on the monitor through rotation and mirroring. The high-contrast LC display also provides an optimum image, even in bright light.

Highlights

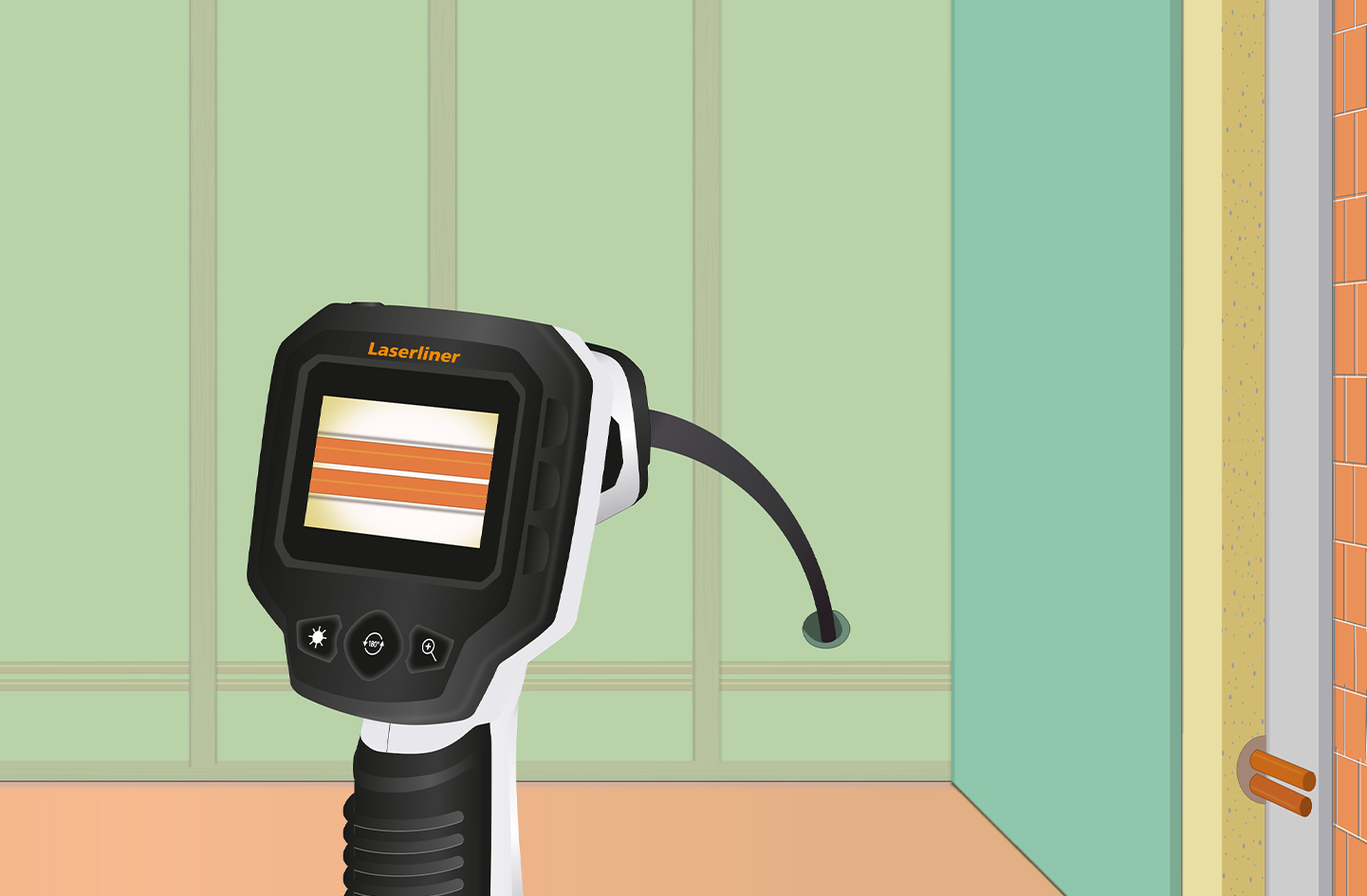

  • Easy problem localisation behind or in objects, walls, pipes, cavities
  • Small camera head, ideal for places that are hard to reach
  • Clear images even under the worst conditions

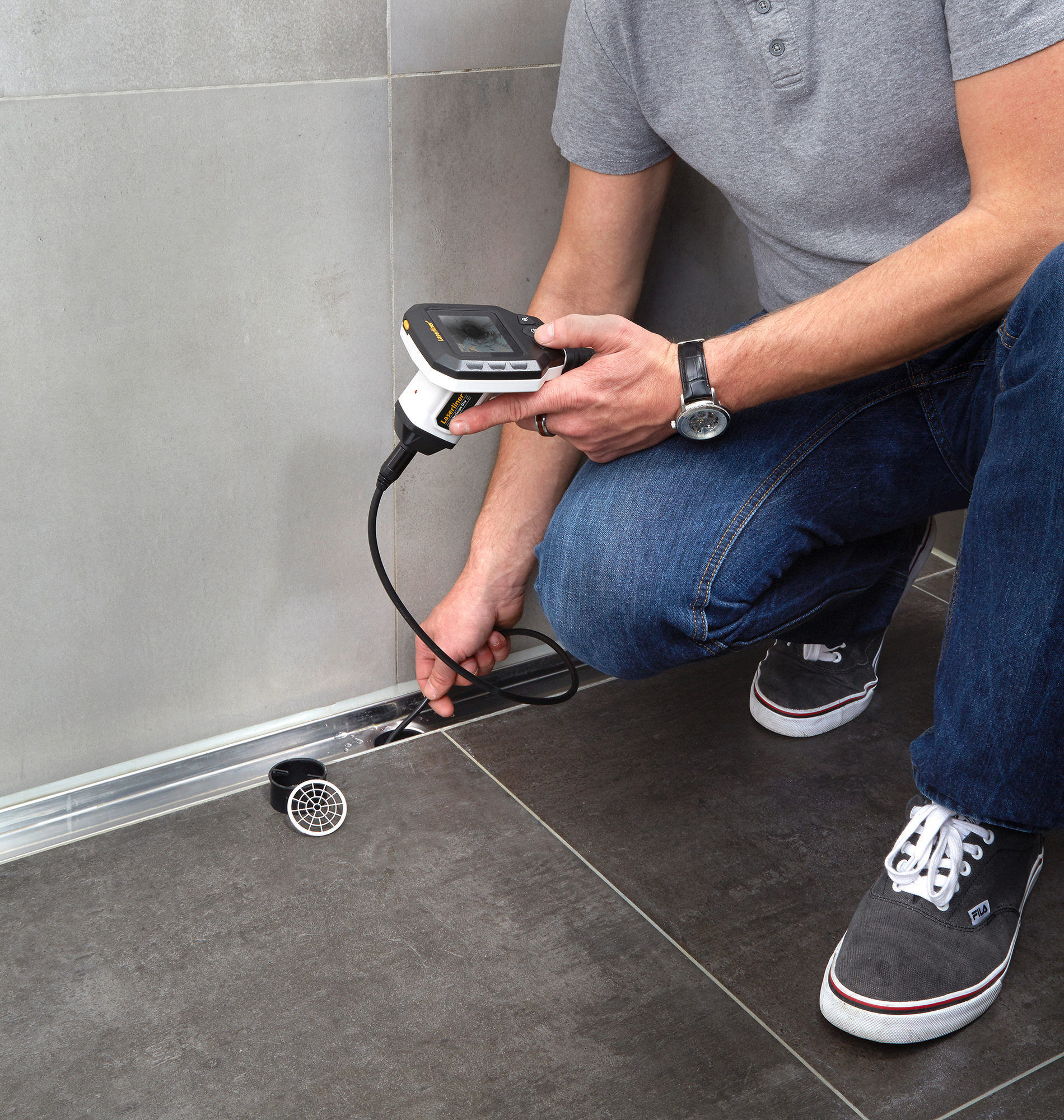

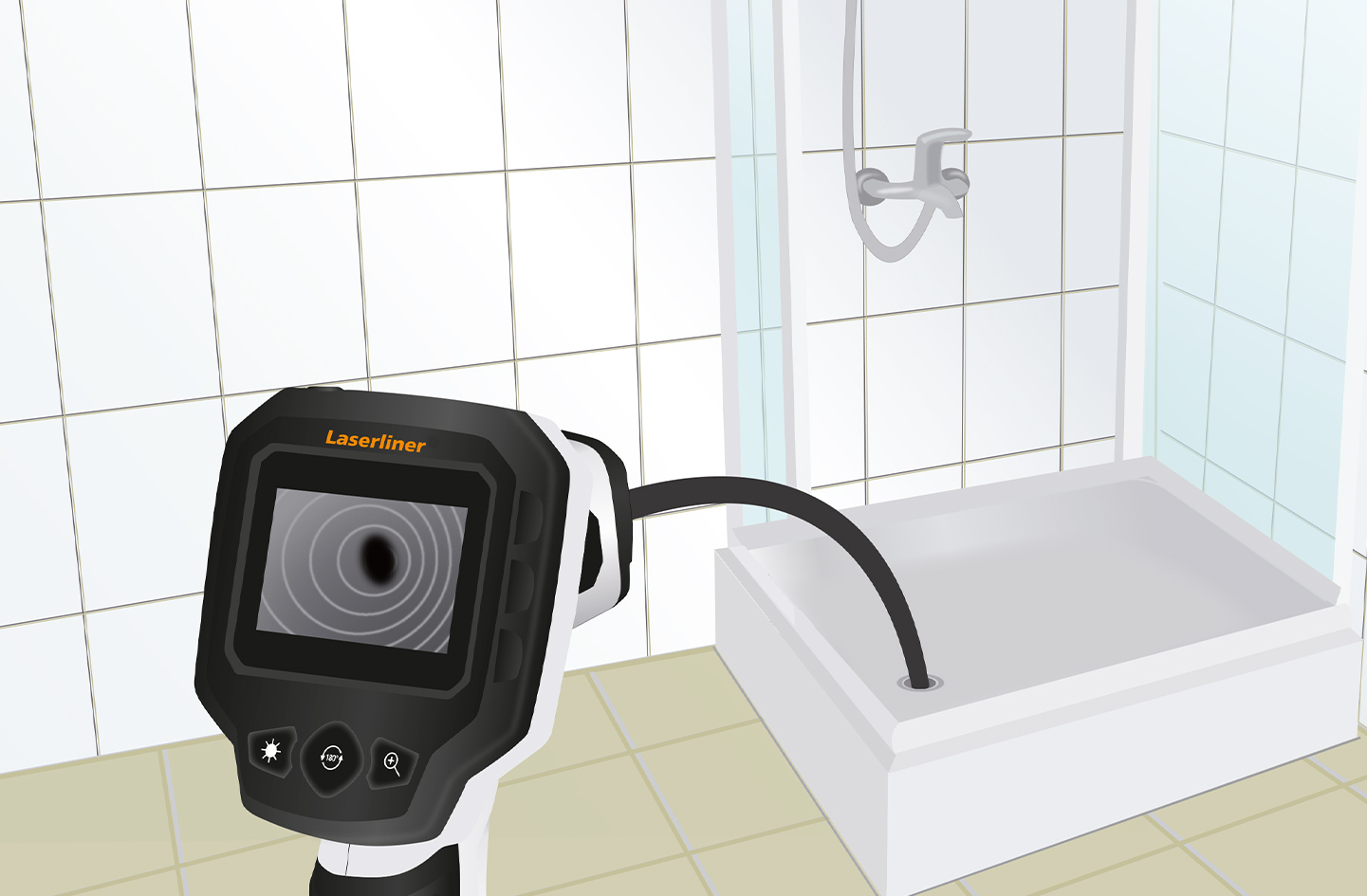

  • Waterproof camera head and cable for use in sanitary areas
  • Resistant to petrol and diesel

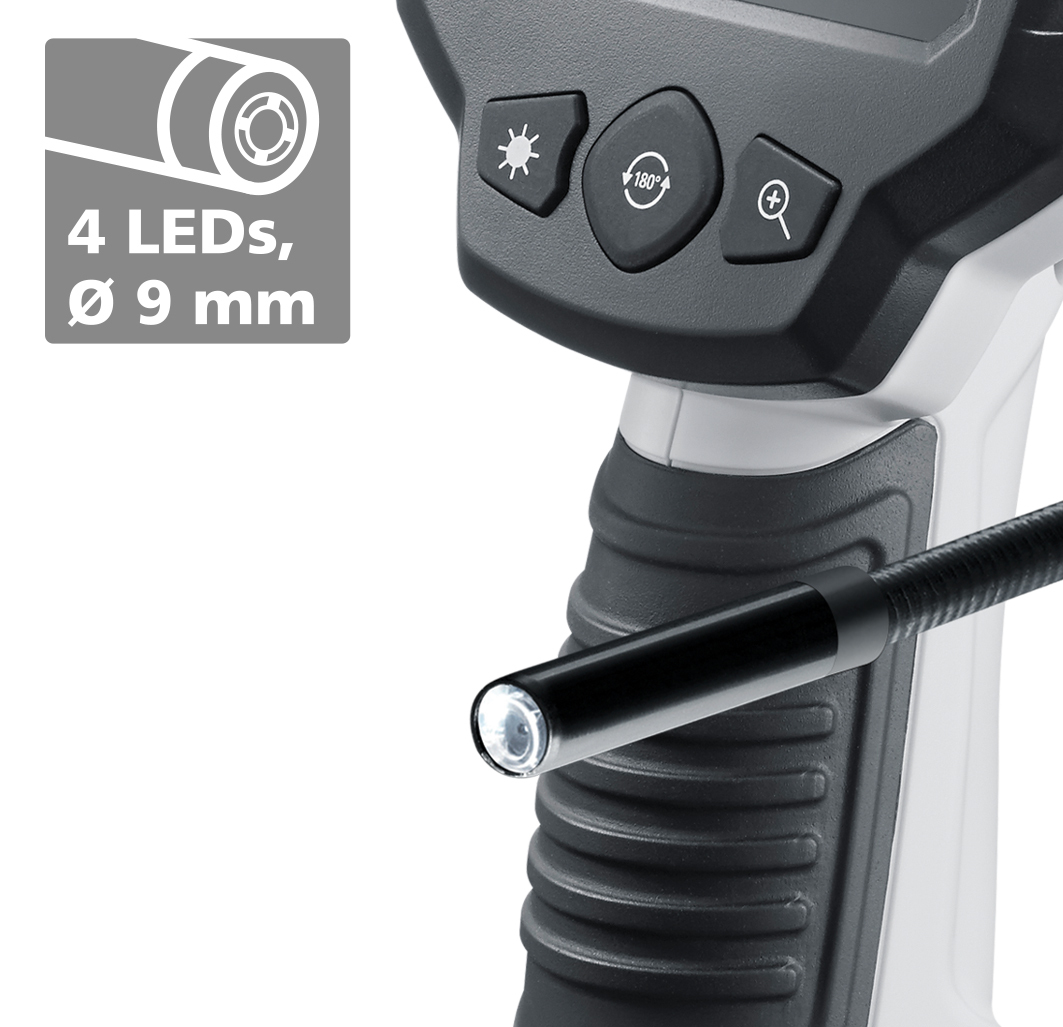

  • Good object lighting due to 4 high-performance LEDs
  • Image clearly discernible through rotation and mirroring

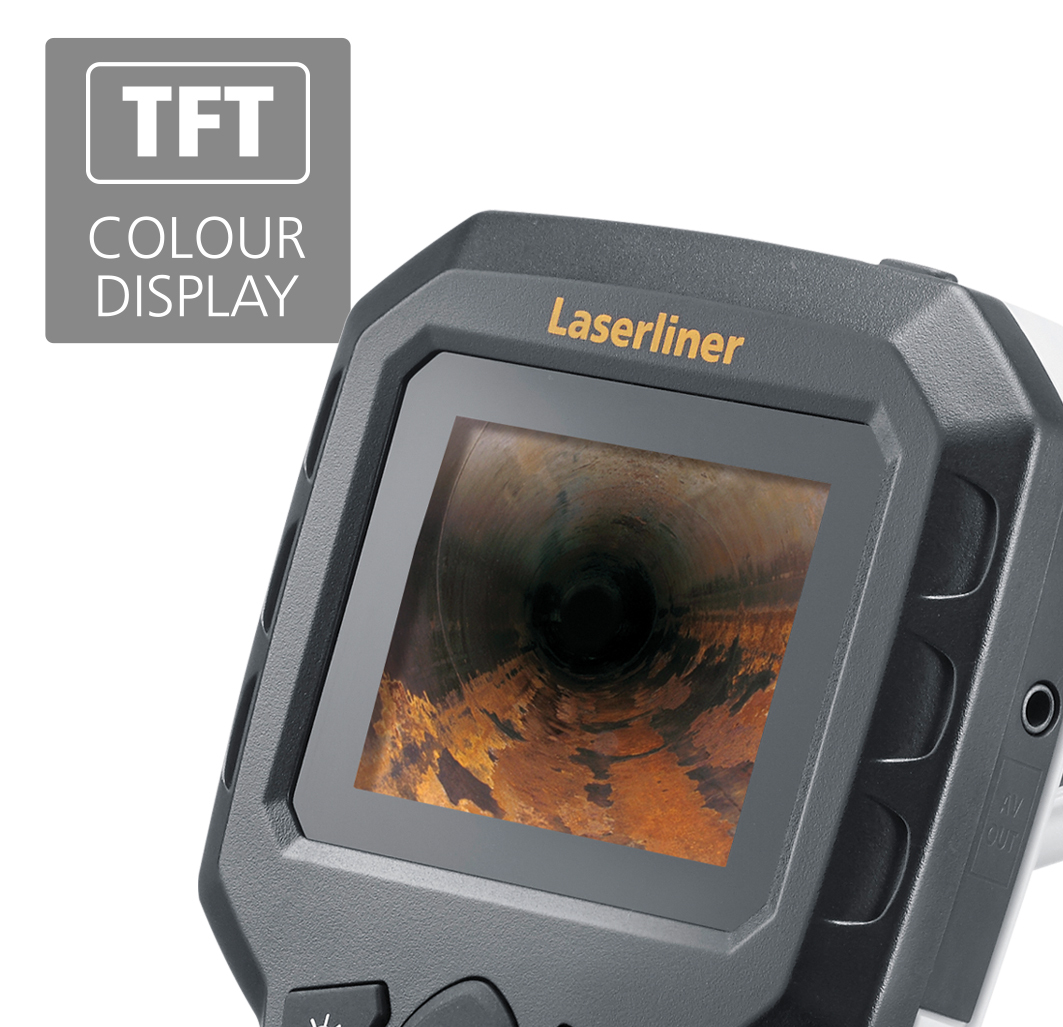

  • Easy-to-read LC display
  • Housing with recycled content

Technical data

Live display✅
Object illumination✅
Digital zoom✅
Image alignment✅
External image/video output✅
Diameter Camera Head9 mm
Camera Resolution320 x 240 pixels
Field of View (FOV)53°
Depth of Focus (DOF)3 … 7 cm
Screen Type2,7"
Display Resolution320 x 240 pixels
Length of Probe1.5 m

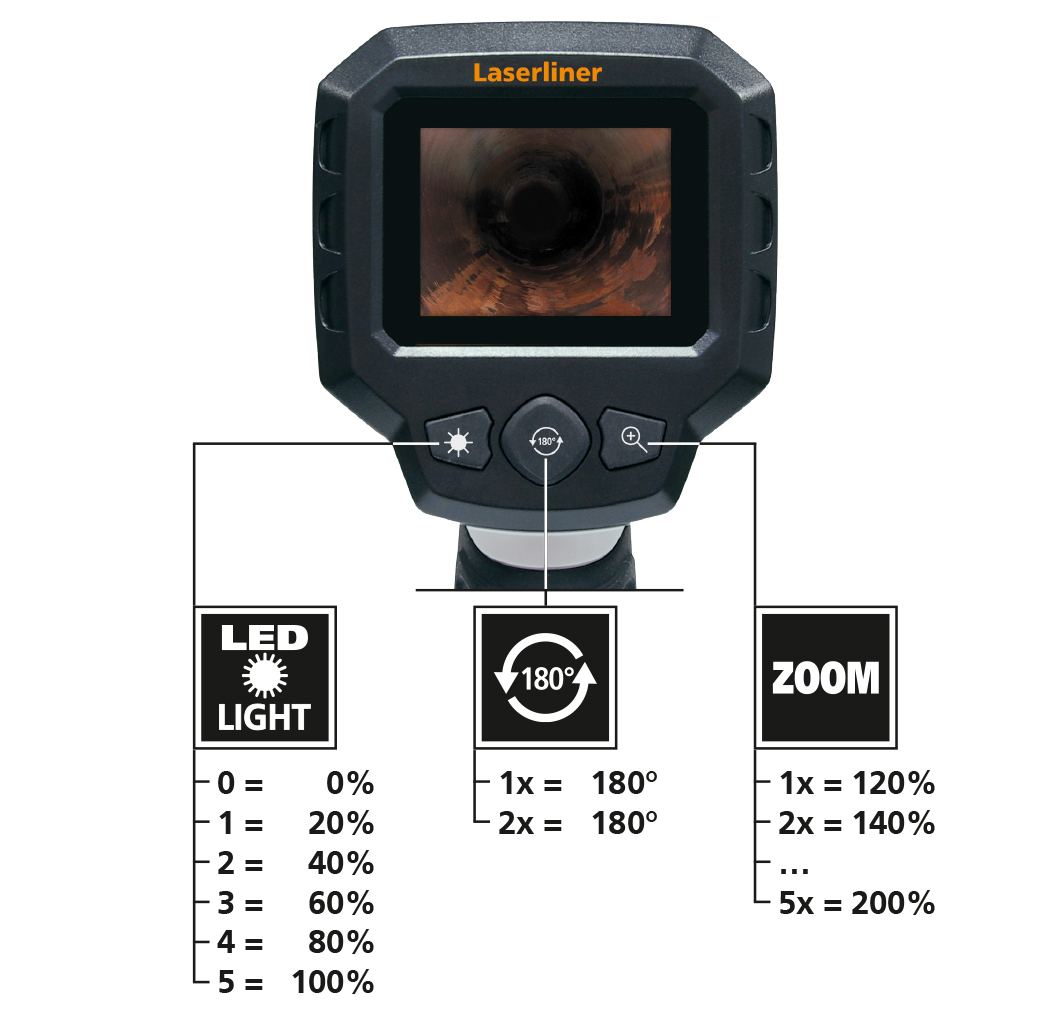

Illumination5 brightness levels
Digital Zoom2x digital zoom in 20% increments
PortsRCA video output
Power Supply4 x 1.5V LR6 (AA)
Dimensions (W x H x D)100 mm x 200 mm x 130 mm
Weight510 g (incl. batteries)

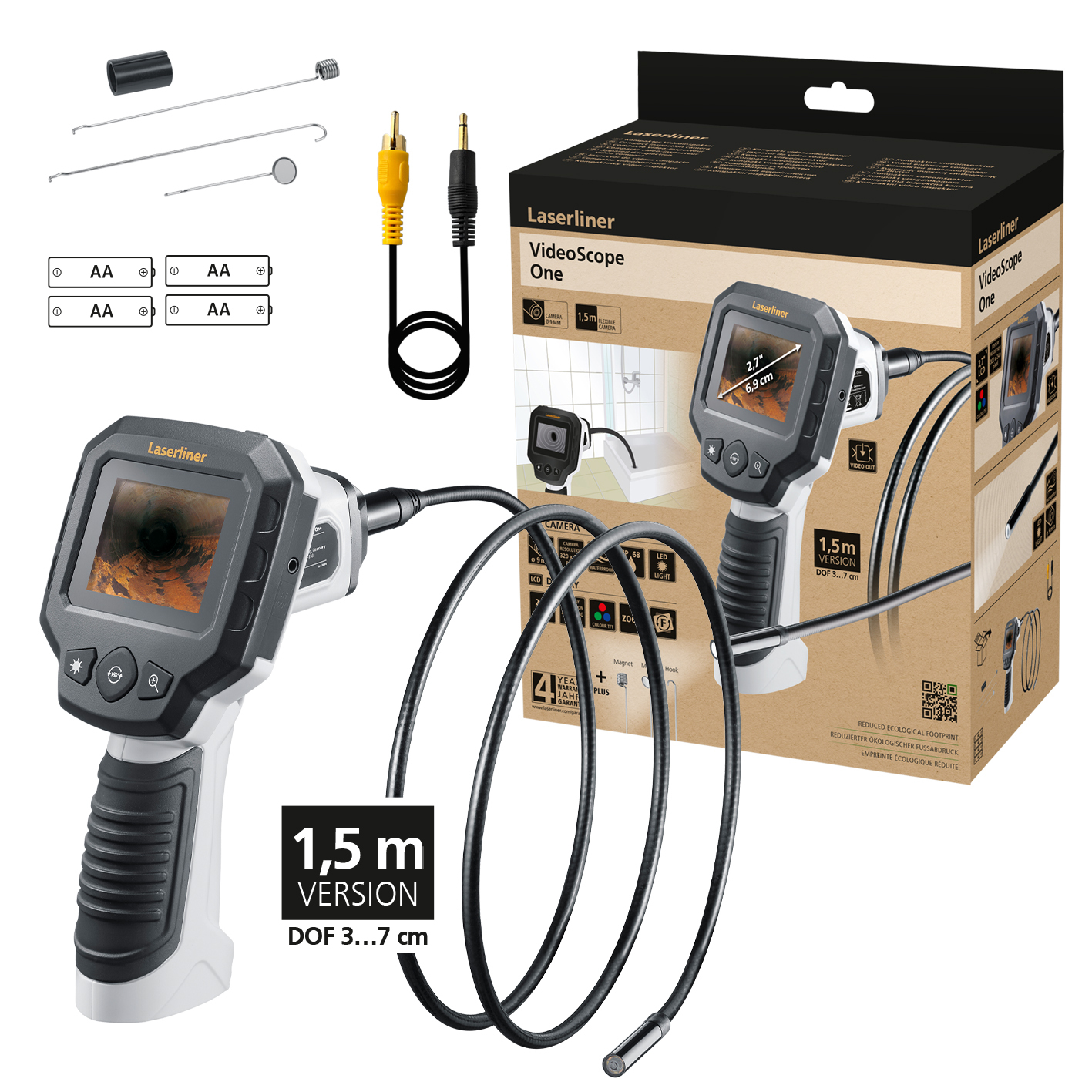

Scope of delivery

  • VideoScope One 1.5 m
  • TopClips
  • batteries

Documents & Downloads
