SmartLine
SuperSquare-Laser 2G
line laser
Item no.: 081.137E
EAN: 4021563733682
EAN: 4021563733682
Product video
Description
Green 90° line laser - use of recycled material

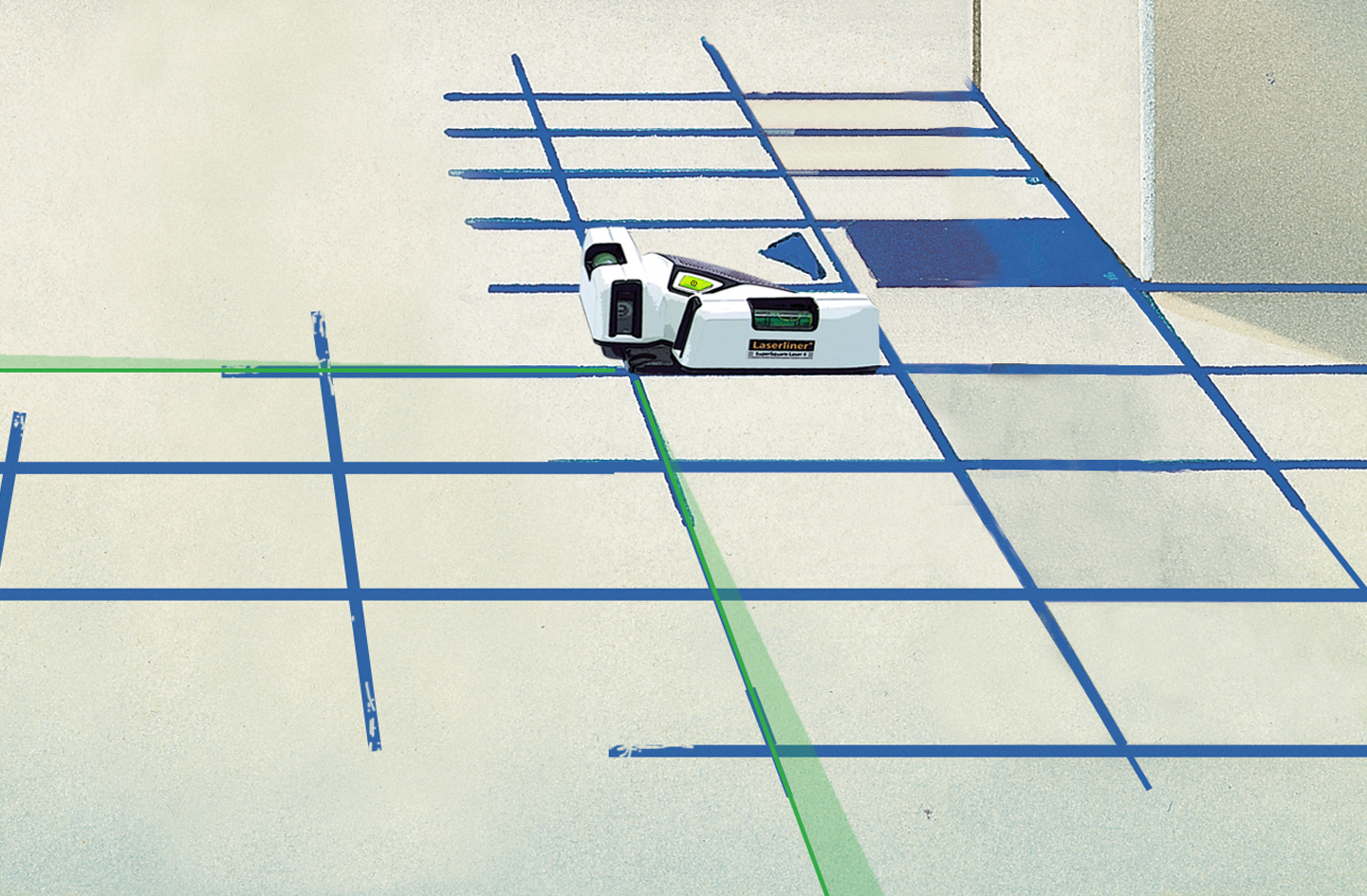

This 90° line laser is ideal for laying wall and floor tiles. Both the projected lines are clearly visible due to the green laser technology. The attached lay edges and contact surface make it easy to position floor tiles. The special pins allow the device to be securely positioned on surfaces such as finishing coats, carpets, wood and veneers. Integral vials allow the device to be adjusted – these can also be used a spirit level.
Highlights

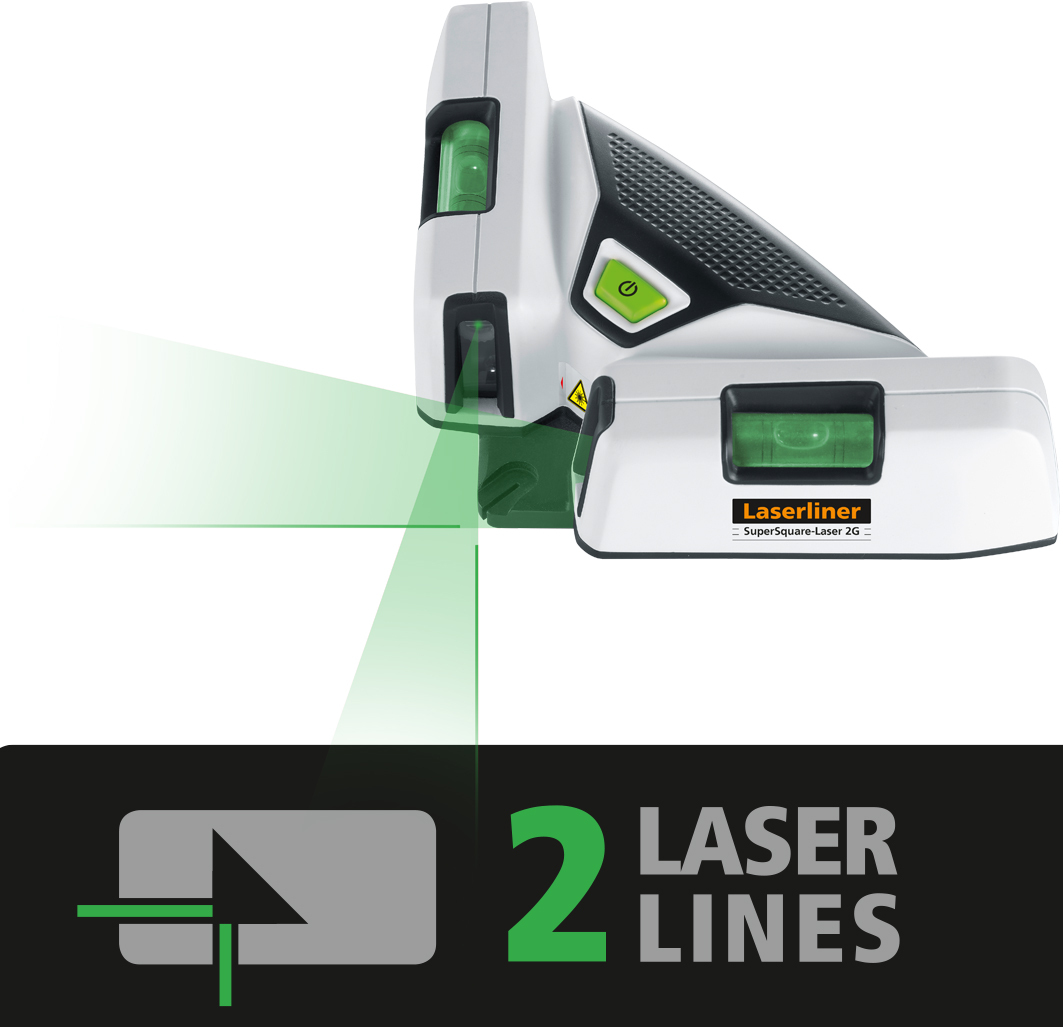

- The 2 clearly visible laser lines are ideally suited for aligning tiles
- Suitable for use on floors and walls

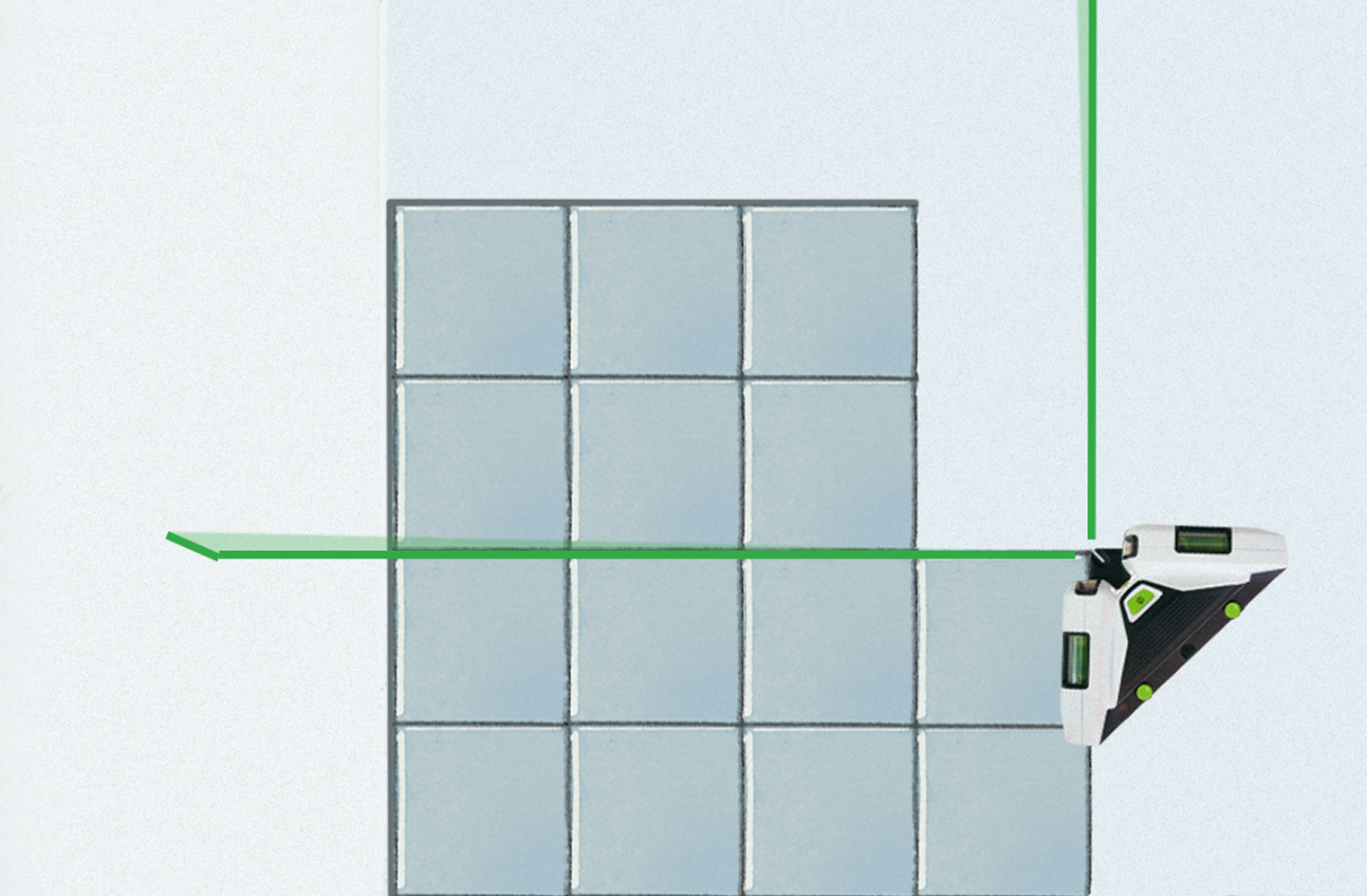

- Vertical and horizontal levelling on walls

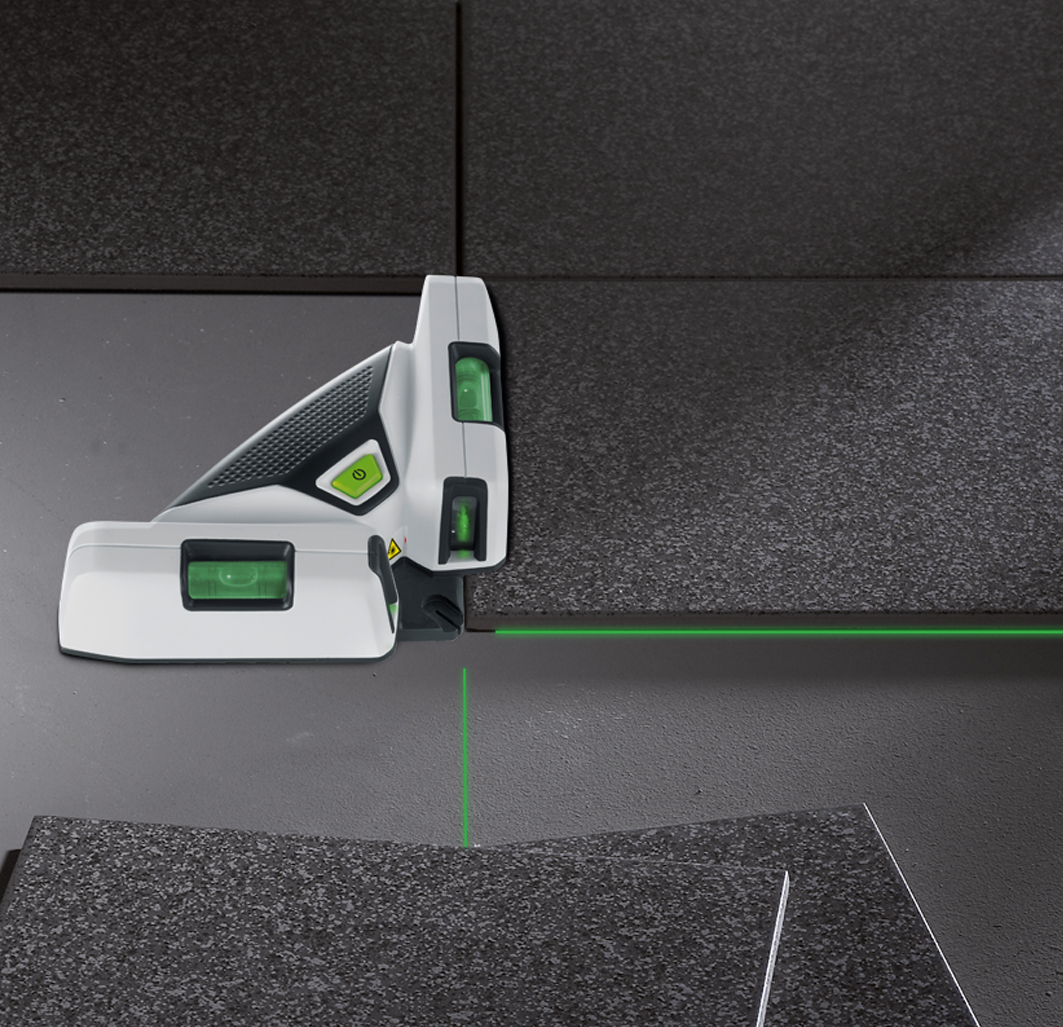

- The applied lay edges and contact surface make it easy to position floor tiles

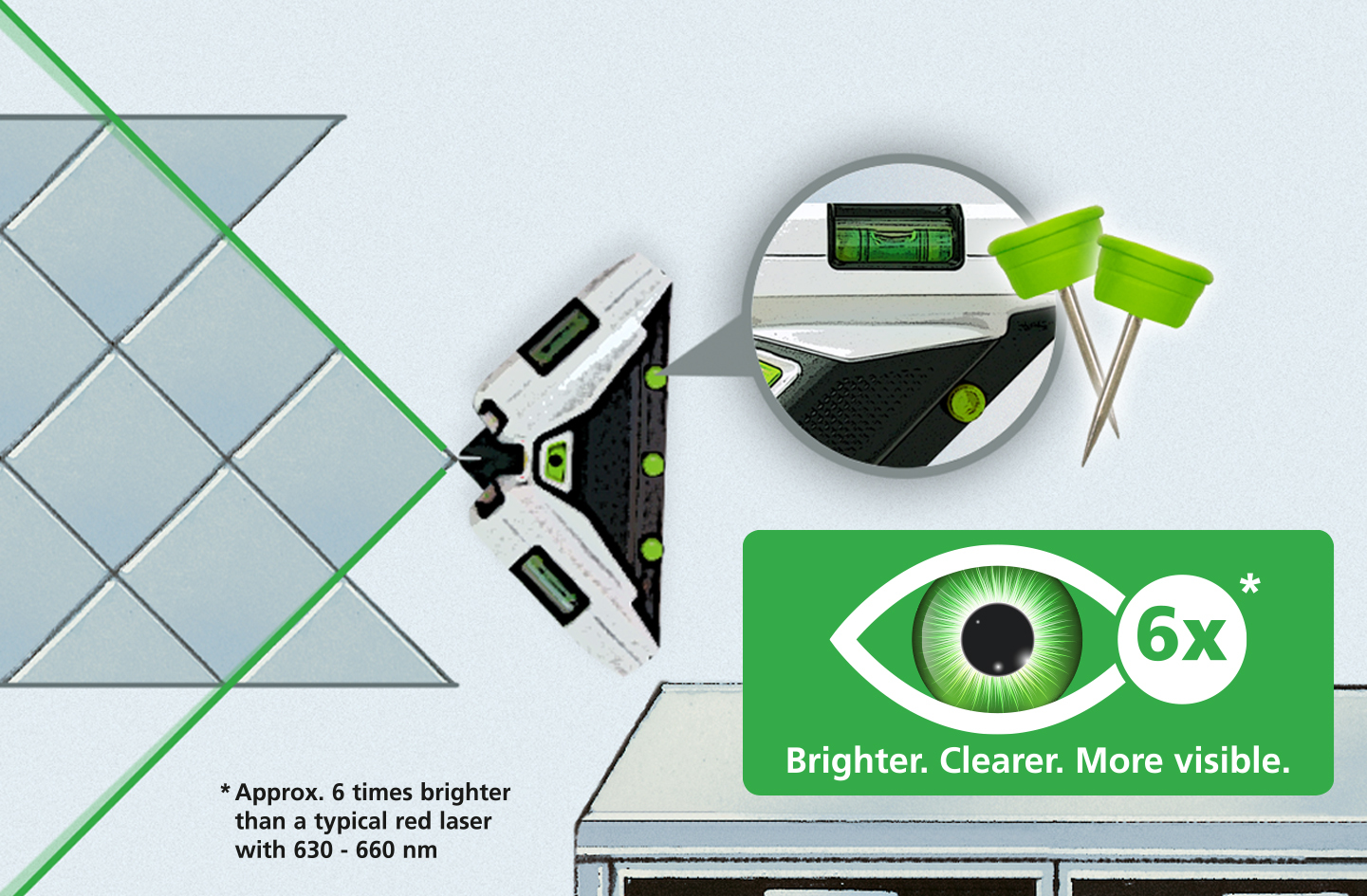

- Special pins allow the device to be positioned on surfaces such as finishing coats, carpets, wood, veneered surfaces etc.
- Bubble levels for adjustment
- Housing with recycled content
Technical data
| Horizontal/vertical levelling | ✅ |
| Manual slope function | ✅ |
| Battery operation | ✅ |
| Levelling | manual |
| Visibility (Typical)* | 40 m |
| Laser Wavelength | 515 nm |

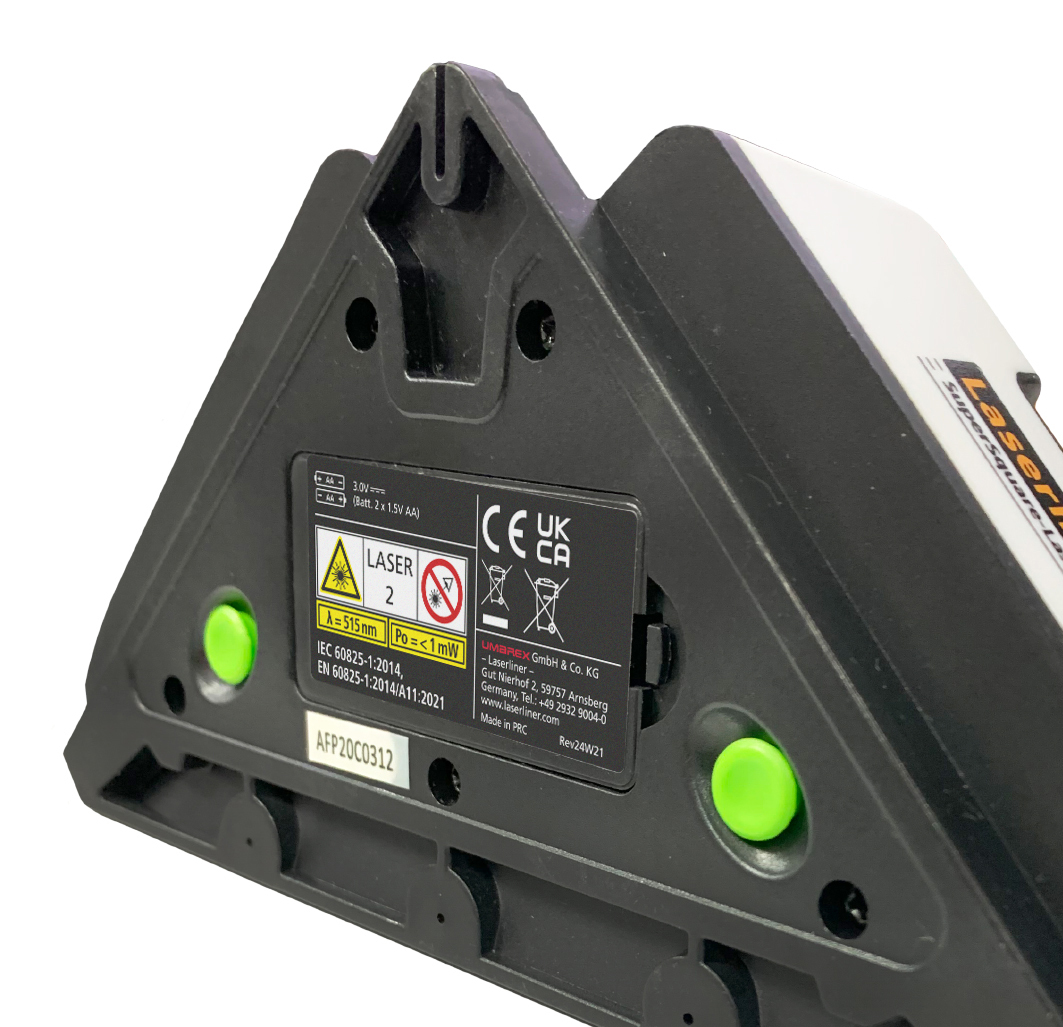

| Laser Class | 2 / < 1 mW |
| Power Supply | 2 x 1.5V LR6 (AA) |
| Operating Time | approx. 3 hours |
| Operating Conditions | 0°C … 50°C, max. humidity 80% rH, no condensation, max. working altitude 4000 m above sea level |
| Storage Conditions | -10°C … 70°C, max. humidity 80% rH |
| Dimensions (W x H x D) | 200 mm x 48 mm x 100 mm |
| Weight | 350 g (incl. batteries) |

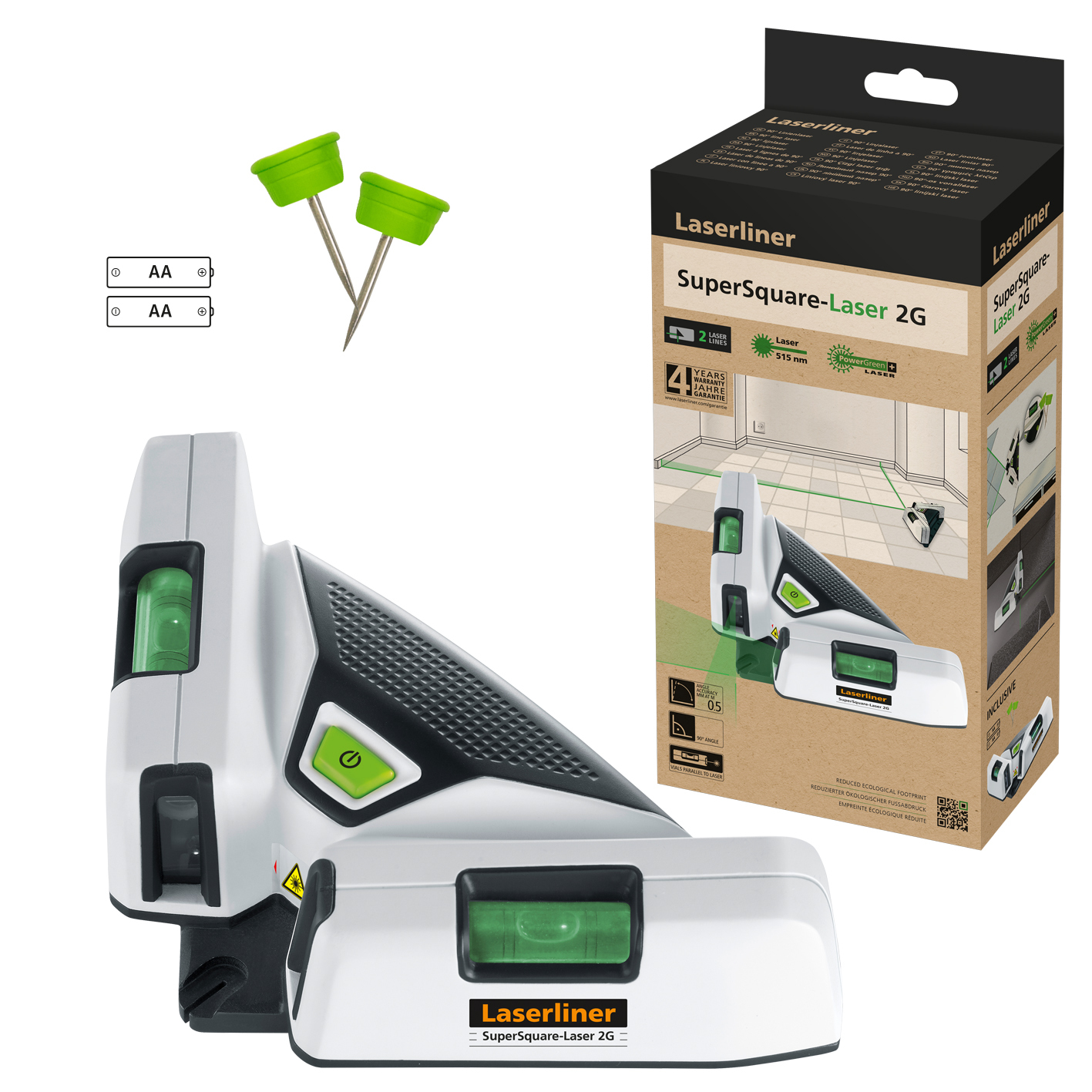

Scope of delivery
- SuperSquare-Laser 2G
- pins
- batteries
Documents & Downloads
- PDF Download product data sheet
- PDF Operating instructions
- PDF Manual Part 2
- PDF CE Declaration of Conformity
