ProLine
DistanceMaster Vision
Laser rangefinder
Item no.: 080.980A
EAN: 4021563703661
EAN: 4021563703661
Product video
Description
Laser distance measurer
An accurate rangefinder for determining lengths, areas and volumes. The application is practical, wall areas with the same height are added automatically and defined measured lengths can be removed with the stake-out function. The measured values are well documented in the internal memory.
Highlights
- Simple measurement, addition and subtraction of lengths, areas and volumes
- Ideal for recording room sizes and calculating material quantities

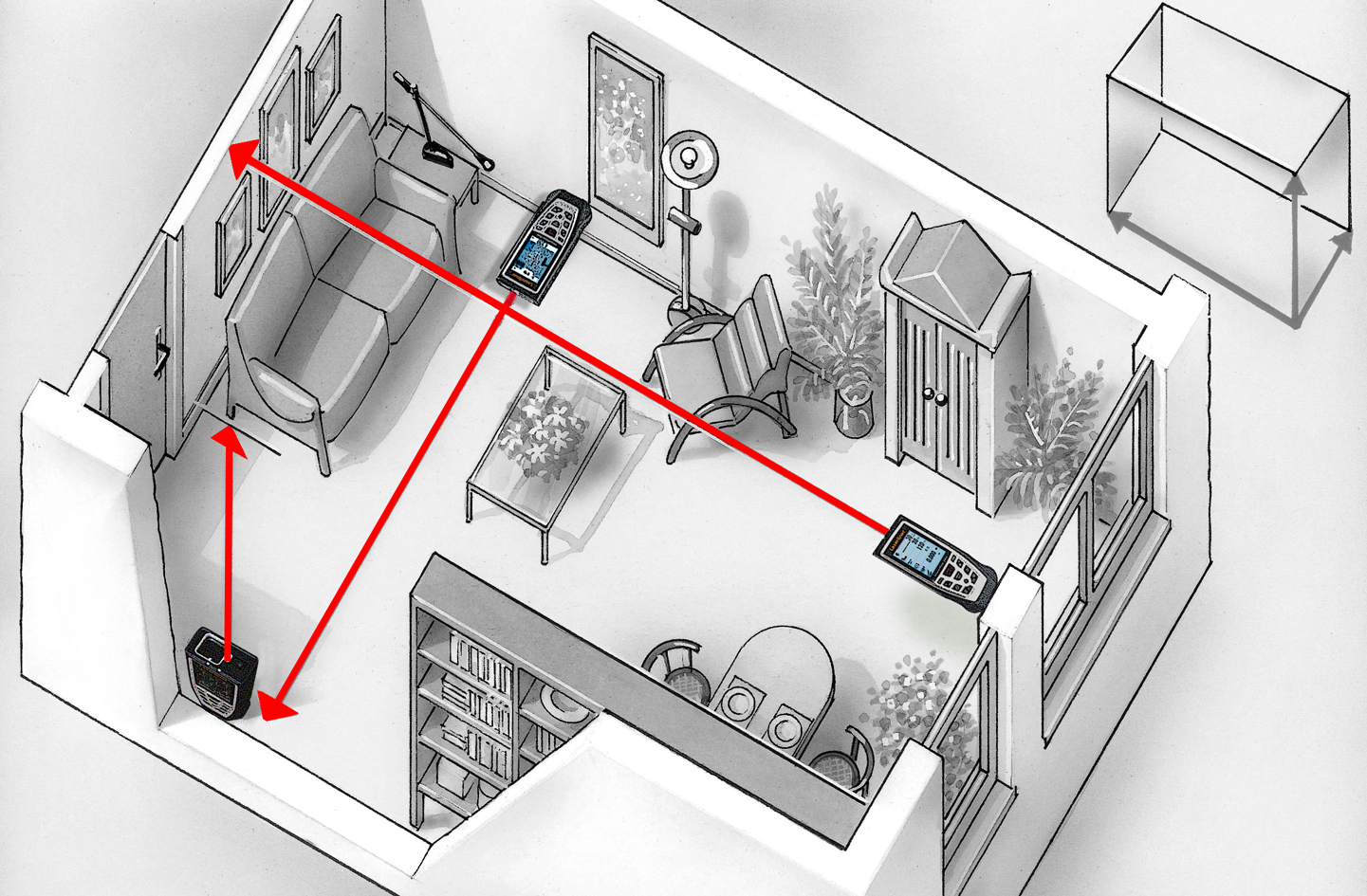

- Practical determination of diagonals, horizontals and verticals
- Determination of horizontal and vertical distance with 360° slope sensor
- Automatic addition of wall areas with the same height
- Stake-out function allows the removal of defined measured lengths
- Exact alignment of the measuring instrument through digital spirit level
- High measuring accuracy
- Easy-to-read colour LC display
Technical data
| Length/area/volume | ✅ |
| Min/Max | ✅ |
| Continuous measurement | ✅ |
| Addition of wall area (decorators’ function) | ✅ |
| Indirect determination of height (Pythagoras) | ✅ |
| Slope display | ✅ |
| Selectable housing reference point | ✅ |
| Addition/subtraction | ✅ |

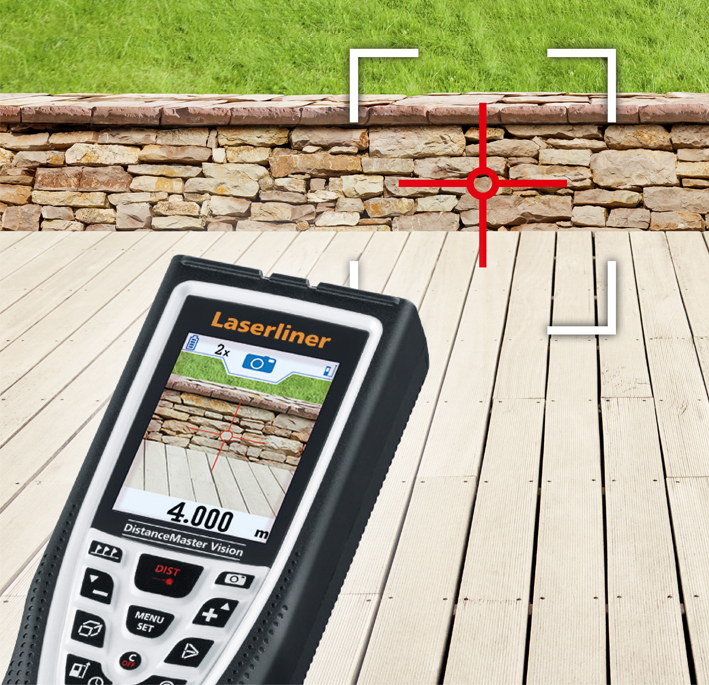

| Camera spotter | ✅ |
| Stake out lengths | ✅ |
| Precision (Typical)* | ± 2 mm |
| Measurement Range (Inside)** | 0,05 m - 80 m |
| Measurement Range Angle Measurement | ± 90° |
| Laser Wavelength | 635 nm |
| Laser Class | 2 / < 1 mW |
| Memory | 50 storage locations |
| Units | m ft _' _'' inch |
| Power Supply | 3 x 1.2V HR03 (AAA) NiMH |
| Operating Conditions | 0°C … 40°C, max. humidity 20 … 85% rH, no condensation, max. working altitude 2000 m above sea level |
| Dimensions (W x H x D) | 58 mm x 135 mm x 30 mm |
| Weight | 210 g (incl. batteries) |
| Properties | * measuring distance up to 10 m with strongly reflective target surface and at room temperature. The measurement deviation may increase by ± 0.2 mm/m for greater distances and under unfavourable measuring conditions such as strong sunlight or weakly reflective target surfaces. ** at max. 10,000 lux |

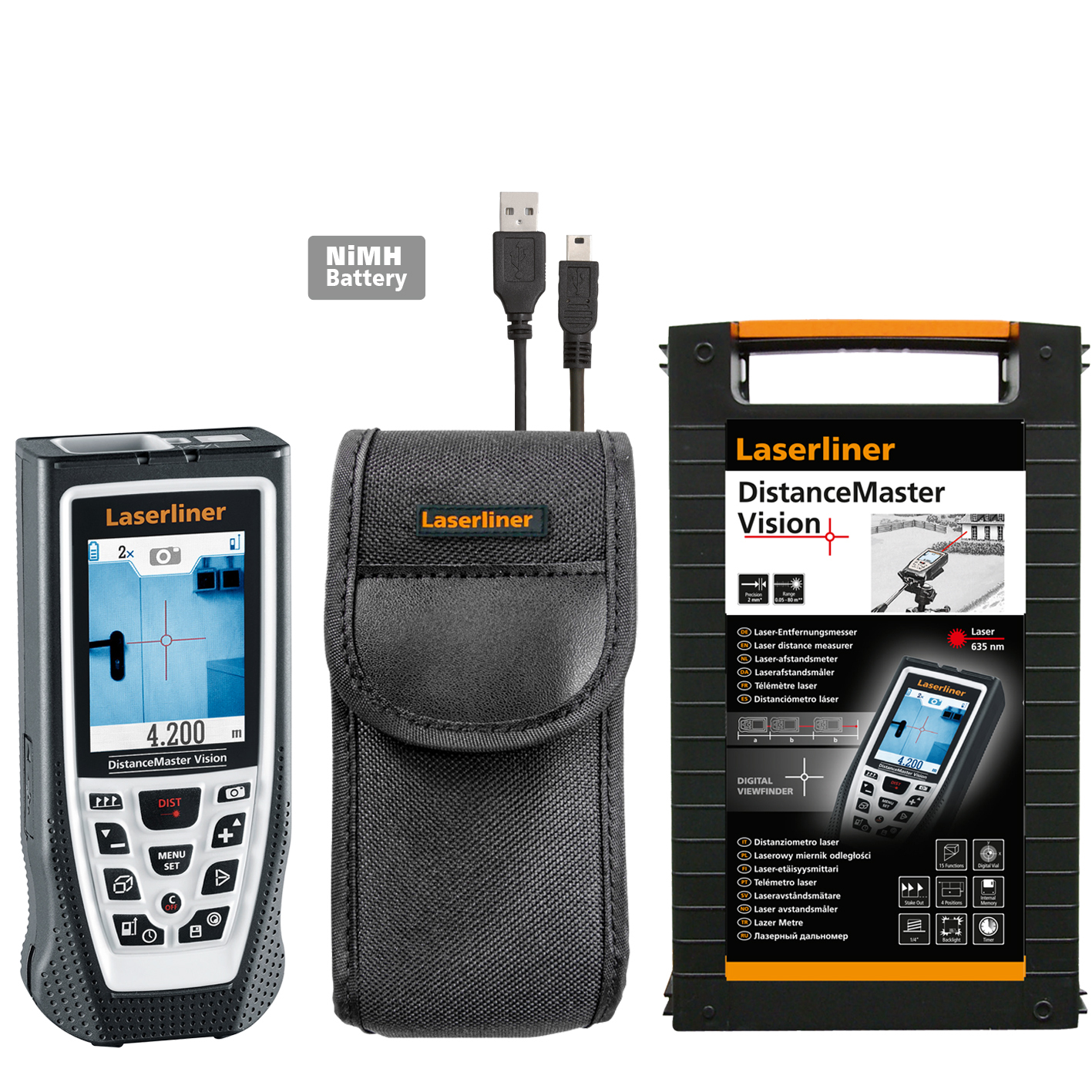

Scope of delivery
- DistanceMaster Vision
- rechargeable batteries
- USB charging cable
- softbag
- carrying case
Documents & Downloads
- PDF Download product data sheet
- PDF Operating instructions
- PDF Manual Part 2
- PDF Manual Part 3
- PDF Manual Part 4
- PDF CE Declaration of Conformity
