ThermoSpot
Temperature measuring device
Item no.: 082.441A
EAN: 4021563719419
EAN: 4021563719419
Product video
Description

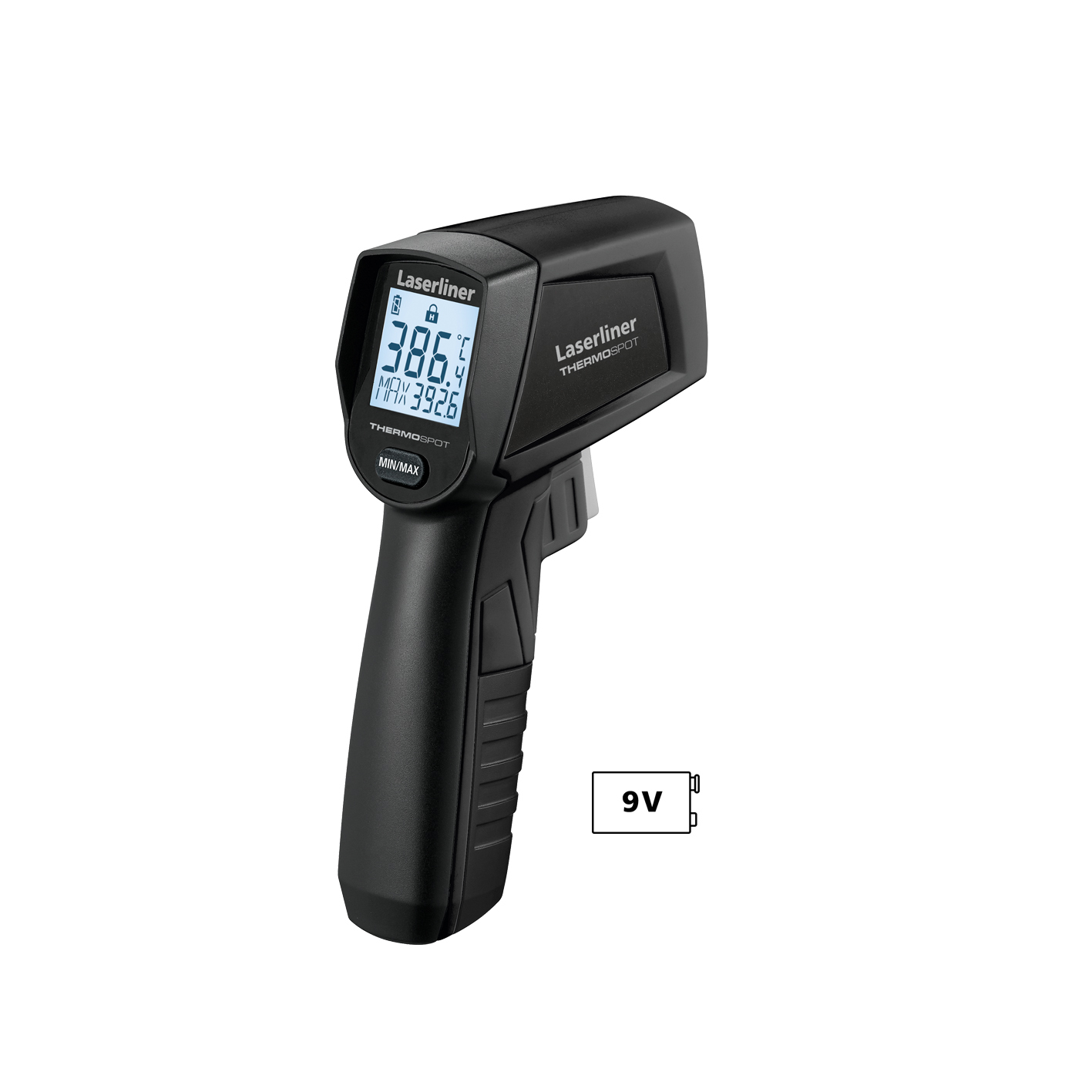

Non-contact infrared temperature measuring device
This non-contact infrared temperature measurement device is ideal for determining surface temperatures in hard-to-reach places. The target laser allows the inspection area to be clearly targeted and sighted. The last measurement value can be saved with the auto-hold function. The minimum and maximum values can be displayed during continuous measurement. The device automatically switches off after a short period of inactivity to save energy.
Highlights
- Precise temperature measurement of surfaces and materials
- Measuring range can be clearly pinpointed thanks to target laser

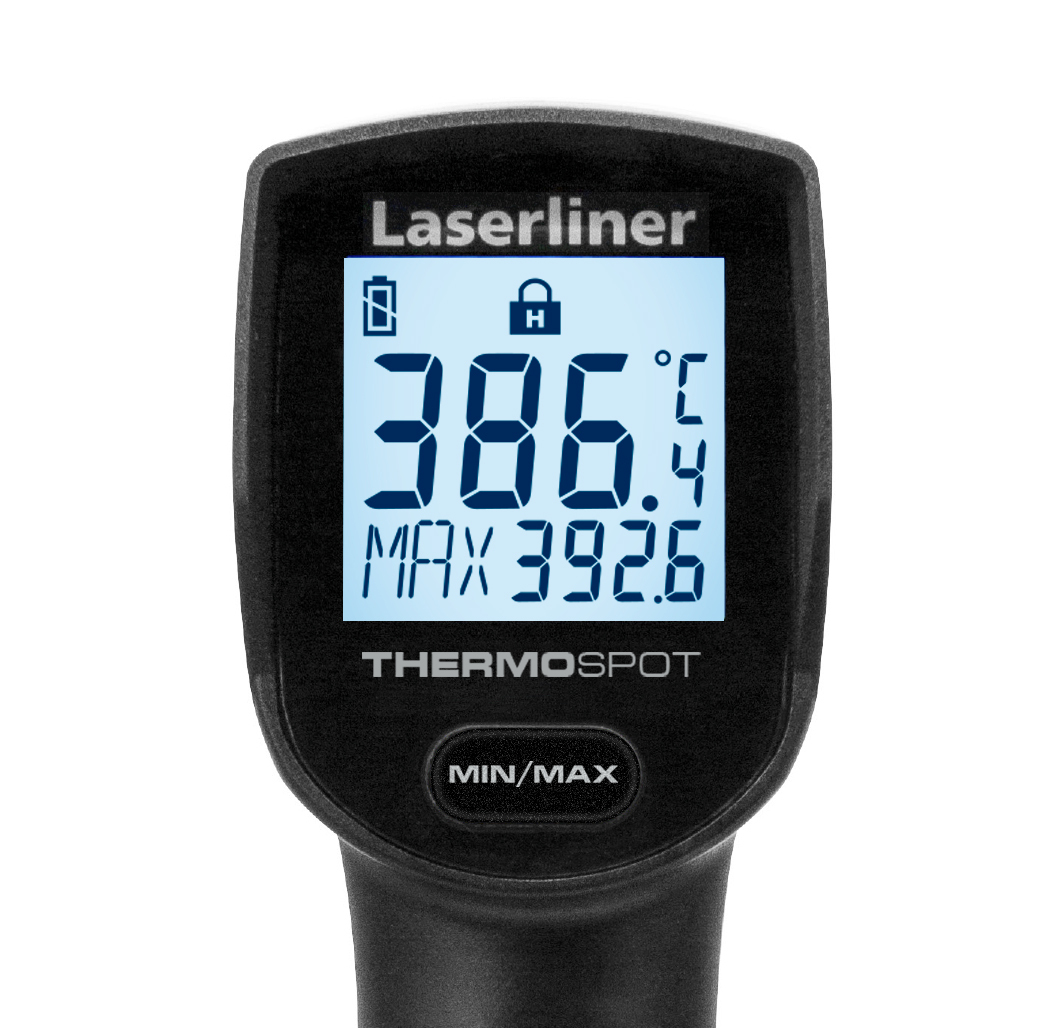

- Practical display of minimum and maximum values through continuous measurements
- Short-term automatic saving of the last measurement value
- Energy-saving Auto Off function when not in use
Technical data
| Auto-hold | ✅ |
| Laser focusing | ✅ |
| Min/Max | ✅ |
| Surface temperature | ✅ |
| Measured Variable | Infrared temperature |
| Features | max. min. HOLD |
| Measuring Range Infrared Temperature | -40°C … 400°C |
| Accuracy Infrared Temperature | ± 2°C + 0,1°C/degree (-40°C ... 0°C) ± 2°C or ± 2% (0°C ... 400°C), greater value applies |
| Emission Coefficient | fixed, 0.95 |

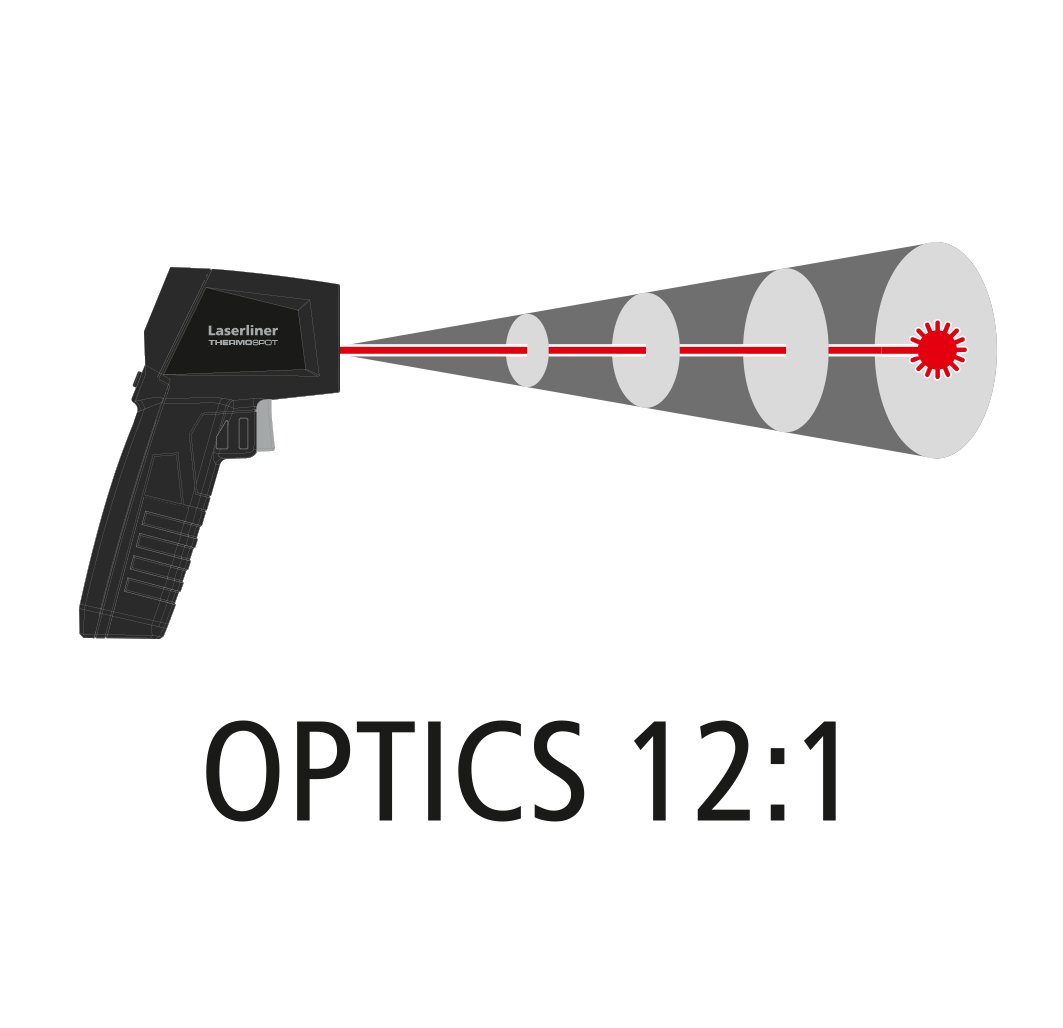

| Optics | 12:1 (12 m distance : 1 m measured spot) |
| Laser Wavelength | 650 nm |
| Laser Class | 2 / < 1 mW |
| Automatic Switch-Off | after 30 seconds |
| Power Supply | 1 x 9V 6LR61 (9V block) |
| Operating Time | approx. 35 hours |
| Dimensions (W x H x D) | 95 mm x 132 mm x 37 mm |
| Weight | 144 g (incl. battery) |
Scope of delivery
- ThermoSpot
- battery
Documents & Downloads
- PDF Download product data sheet
- PDF Operating instructions
- PDF Manual Part 2
- PDF Manual Part 3
- PDF CE Declaration of Conformity
